Alluxa 高性能滤光片以先进的设计工艺和镀膜过程控制,使Alluxa滤光片具有行业内*高的透过率,极高的截至深度和波长精确性,其中通过SIRRUS™离子束沉积硬镀膜技术,也使得Alluxa滤光片具有使用寿命长,高损伤阈值,以及极高的批次稳定性等特点,并已经广泛应用于生物荧光系统、拉曼系统、量子、雷达通讯等精密光学系统中.
Alluxa除了丰富的标准品,同时提供定制服务,并且定制成本在行业内有相当大的竞争力.
Alluxa窄带滤光片

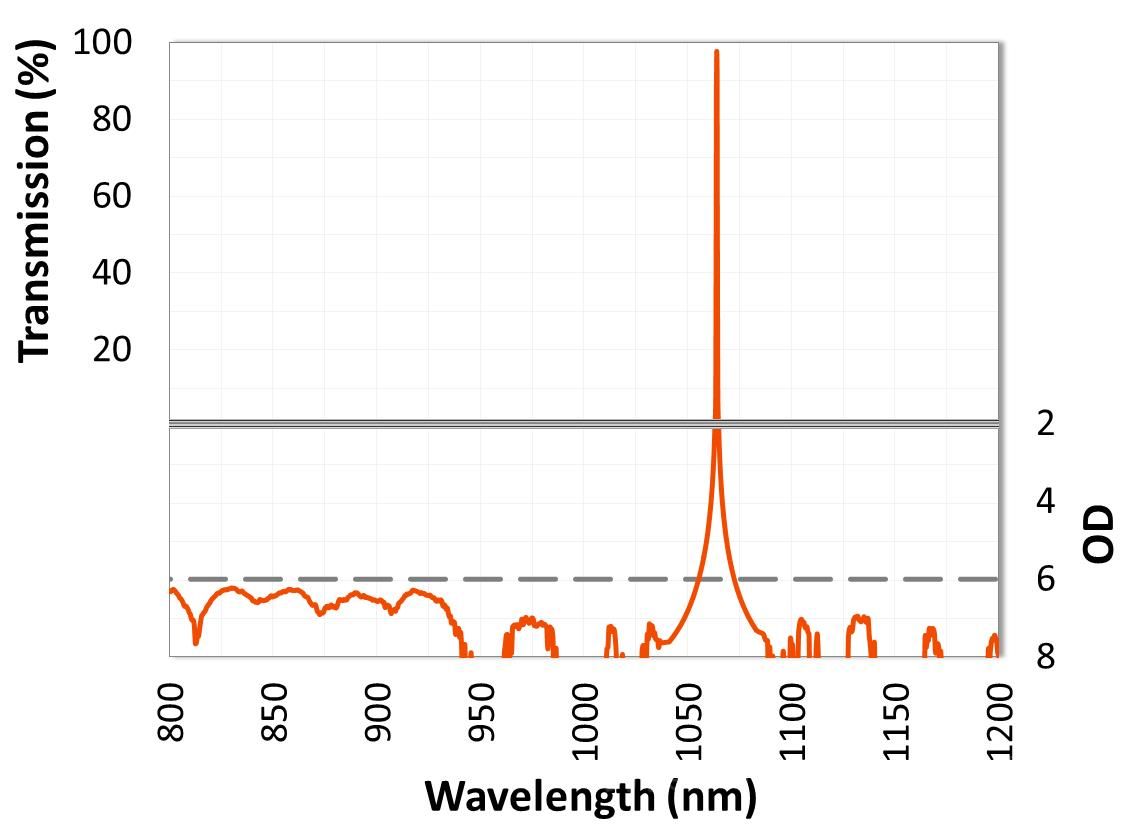

图1.带有OD6阻隔的超窄带滤光片，用于1064 nm Nd：YAG激光器。
凭借业界zui窄的带宽和zui高的透过率，Alluxa的薄膜超窄带带通滤光片将优化基于激光的系统的性能。
超窄滤光片非常适合用作激光线，激光清除或激光激发滤光片，适用于荧光显微镜，流式细胞仪和DNA测序等应用。它们对激光损伤也很有抵抗力，可确保它们长时间保持高水平的性能。
应用：LIDAR, 拉曼光谱, 及需要净化激光器的精密光学系统.
特点：
透过率：可达99%
*窄带宽： 0.1nm
截至深度： ~OD10
波长范围： 250nm~6.2 µm可选
中心波长精度：0.05nm
透过波前差(RMS)： *优0.01λ per inch @ 632.8 nm
精密控制用的Flat-top

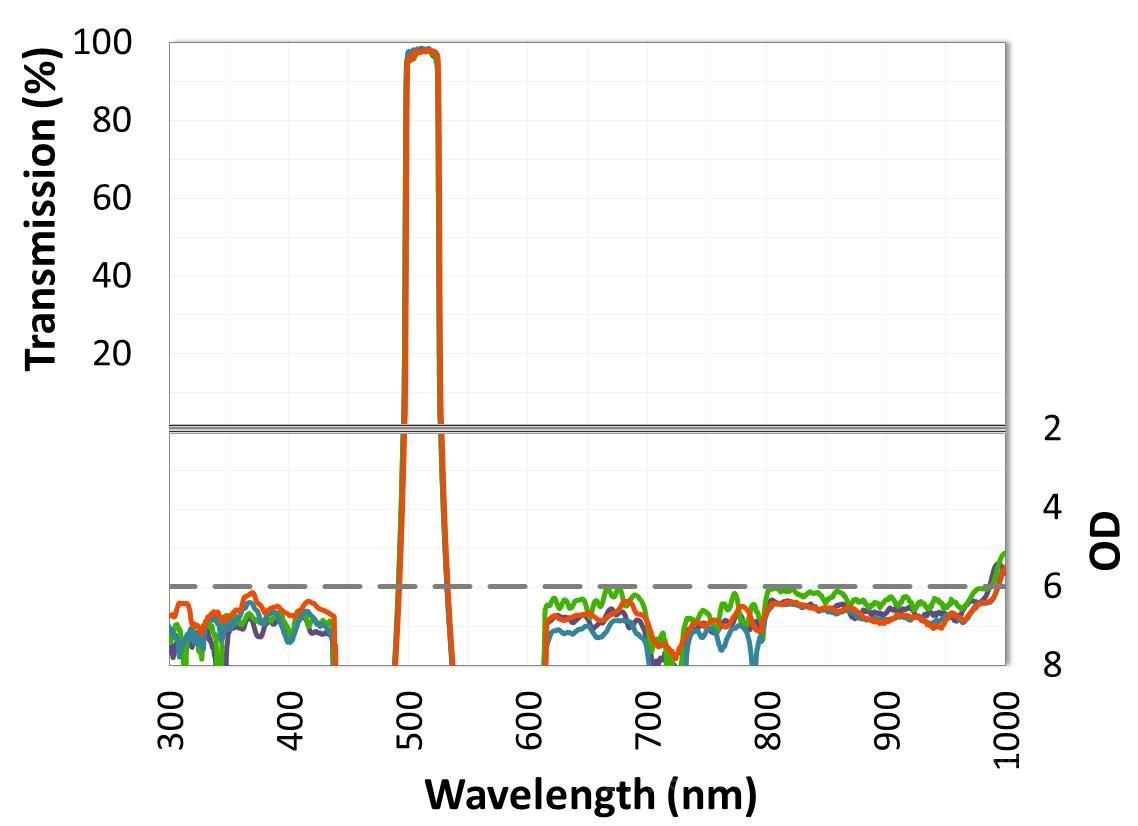

图2.平顶超窄带通滤波器，具有陡峭的边缘，深的阻塞和方形频谱形状。
Flat-top,超窄的带通滤波器特别设计，在整个通带中有极陡的边缘和高透过率。这个正方形的光谱形状可以达到0.1 nm的带宽。Flat-top窄带滤波器是理想的激光雷达、拉曼光谱和其他需要使用精密激光发射滤波器或激光清理过滤器的应用。
创新的薄膜工艺使产品质量一致性
图3. ULTRA系列滤光片的波长控制，传输和截至在几种不同的涂层运行中具有高度可重复性。
Alluxa薄膜滤光片和介质反射镜均采用我们的SIRRUS™离子束沉积硬镀膜技术，这使我们能够在多个不同的涂层运行中可靠地重复生产相同的高性能薄膜带通滤波器，这意味着您的所有系统性能始终如一。
266-2 OD5 Ultra Narrow Bandpass Filter Item Number 7065 Angle of Incidence 0 Degrees Center Wavelength 266 nm Nominal FWHM < 2.3 nm Transmission Band(s)† 266 nm > 65% T Absolute Blocking Level OD5 Blocking Range(s)* OD5: 240 to 256 nm, 276 to 300 nm Filter Design Multi-Cavity Substrate Type Fused Silica Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 307.7-0.5 OD4 Ultra Narrow Bandpass Filter Item Number 7546 Angle of Incidence 0 Degrees Center Wavelength 307.7 nm Nominal FWHM < 0.7 nm Transmission Band(s)† 307.7 nm > 65% T Absolute Blocking Level OD4 Blocking Range(s)* OD4: 200 to 301 nm, 315 to 500 nm Filter Design Multi-Cavity Substrate Type Fused Silica Dimensions 25.3 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 5.0 mm 308-0.5 OD4 Ultra Narrow Bandpass Filter Item Number 7238 Angle of Incidence 0 Degrees Center Wavelength 308 nm Nominal FWHM < 0.7 nm Transmission Band(s)† 308 nm > 65% T Absolute Blocking Level OD4 Blocking Range(s)* OD4: 200 to 301 nm, 315 to 500 nm Filter Design Multi-Cavity Substrate Type Fused Silica Dimensions 25.3 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 5.0 mm 317.5-1.8 OD6 Ultra Narrow Bandpass Filter Item Number 7030 Angle of Incidence 0 Degrees Center Wavelength 317.5 nm Nominal FWHM < 2.0 nm Transmission Band(s)† 317.5 nm > 70% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 200 to 308 nm; OD5: 328 to 700 nm; OD3: 700 to 1200 nm Filter Design Multi-Cavity Substrate Type Fused Silica Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 325-2 OD6 Ultra Narrow Bandpass Filter Item Number 7003 Angle of Incidence 0 Degrees Center Wavelength 325 nm Nominal FWHM < 2.3 nm Transmission Band(s)† 325 nm > 75% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 295 to 318 nm, 333 to 400 nm Filter Design Multi-Cavity Substrate Type Fused Silica Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 337-1.5 OD6 Ultra Narrow Bandpass Filter Item Number 7022 Angle of Incidence 0 Degrees Center Wavelength 337 nm Nominal FWHM < 1.7 nm Transmission Band(s)† 337 nm > 80% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 291 to 331 nm, 343 to 380 nm Filter Design Multi-Cavity Substrate Type Fused Silica Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 337-1.5 OD6 Ultra Narrow Bandpass Filter Item Number 7021 Angle of Incidence 0 Degrees Center Wavelength 337 nm Nominal FWHM < 1.7 nm Transmission Band(s)† 337 nm > 80% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 291 to 331 nm, 343 to 380 nm Filter Design Multi-Cavity Substrate Type Fused Silica Dimensions 12.5 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 343.3-1 OD7 Ultra Narrow Bandpass Filter Item Number 7559 Angle of Incidence 0 Degrees Center Wavelength 343.3 nm Nominal FWHM < 1.2 nm Transmission Band(s)† 343.3 nm > 75% T Absolute Blocking Level OD7 Blocking Range(s)* OD7 (By Design): 300 to 335 nm, 351 to 900 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.3 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 5.0 mm 354.7-0.5 OD7 Ultra Narrow Bandpass Filter Item Number 7082 Angle of Incidence 0 Degrees Center Wavelength 354.7 nm Nominal FWHM < 0.6 nm Transmission Band(s)† 354.7 nm > 70% T Absolute Blocking Level OD7 Blocking Range(s)* OD7 (By Design): 300 to 337 nm, 375 to 900 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.3 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 5.0 mm 354.72-1 OD8 Ultra Narrow Bandpass Filter Item Number 7644 Angle of Incidence 0 Degrees Center Wavelength 354.72 nm Nominal FWHM < 1.2 nm Transmission Band(s)† 354.72 nm > 75% T Absolute Blocking Level OD8 Blocking Range(s)* OD8 (By Design): 1064.15 nm, 532.08 nm; OD6: 200 to 346 nm, 363 to 1200 nm Filter Design Multi-cavity Substrate Type Borofloat® Dimensions 50.6 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 354.72-1 OD6 Ultra Narrow Bandpass Filter Item Number 7352 Angle of Incidence 0 Degrees Center Wavelength 354.72 nm Nominal FWHM < 1.2 nm Transmission Band(s)† 354.72 nm > 80% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 200 to 346 nm, 363 to 1200 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.3 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 5.0 mm 354.72-0.15 OD5 Ultra Narrow Bandpass Filter Item Number 7057 Angle of Incidence 0 Degrees Center Wavelength 354.72 nm +0.4 / -0.1nm FWHM < 0.2 nm Transmission Band(s)† Peak> 70% T Absolute Blocking Level OD5 Blocking Range(s)* OD5: 200 to 340 nm, 370 to 1200 nm Filter Design Single Cavity Substrate Type Fused Silica Dimensions 25.3 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 5.0 mm 354.78-0.5 OD6 Ultra Narrow Bandpass Filter Item Number 7067 Angle of Incidence 0 Degrees Center Wavelength 354.78 nm +0.4 / -0.1nm FWHM < 0.6 nm Transmission Band(s)† Peak> 70% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 200 to 335 nm, 375 to 1200 nm Filter Design Single Cavity Substrate Type Fused Silica Dimensions 25.3 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 5.0 mm 354.84-0.3 OD6 Ultra Narrow Bandpass Filter Item Number 7240 Angle of Incidence 0 Degrees Center Wavelength 354.84 nm Nominal FWHM < 0.35 nm Transmission Band(s)† 354.84 nm > 75% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 200 to 347 nm, 363 to 950 nm Filter Design Multi-Cavity Substrate Type Fused Silica Dimensions 25.0 mm Diameter Filter Thickness 5.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 6.5 mm 354.84-0.3 OD6 Ultra Narrow Bandpass Filter Item Number 7239 Angle of Incidence 0 Degrees Center Wavelength 354.84 nm Nominal FWHM < 0.35 nm Transmission Band(s)† 354.84 nm > 75% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 200 to 347 nm, 363 to 950 nm Filter Design Multi-Cavity Substrate Type Fused Silica Dimensions 38.1 mm Diameter Filter Thickness 5.0 mm Assembly Type Unmounted 354.9-0.5 OD7 Ultra Narrow Bandpass Filter Item Number 7561 Angle of Incidence 0 Degrees Center Wavelength 354.9 nm Nominal FWHM < 0.6 nm Transmission Band(s)† 354.9 nm > 70% T Absolute Blocking Level OD7 Blocking Range(s)* OD7 (By Design): 300 to 337 nm, 375 to 900 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.3 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 5.0 mm 355-2 OD6 Ultra Narrow Bandpass Filter Item Number 7005 Angle of Incidence 0 Degrees Center Wavelength 355 nm Nominal FWHM < 2.3 nm Transmission Band(s)† 355 nm > 80% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 300 to 350 nm, 360 to 430 nm Filter Design Multi-Cavity Substrate Type Fused Silica Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 386.6-0.3 OD8 Ultra Narrow Bandpass Filter Item Number 7536 Angle of Incidence 0 Degrees Center Wavelength 386.6 nm Nominal FWHM < 0.35 nm Transmission Band(s)† 386.6 nm > 75% T Absolute Blocking Level OD8 Blocking Range(s)* OD8 (By Design): 1064.15 nm, 354.72 nm, 532.08 nm; OD6: 200 to 378 nm, 394 to 1200 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.3 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 5.0 mm 386.69-0.3 OD8 Ultra Narrow Bandpass Filter Item Number 7537 Angle of Incidence 0 Degrees Center Wavelength 386.69 nm Nominal FWHM < 0.35 nm Transmission Band(s)† 386.69 nm > 75% T Absolute Blocking Level OD8 Blocking Range(s)* OD8 (By Design): 1064.15 nm, 354.72 nm, 532.08 nm; OD6: 200 to 378 nm, 394 to 1200 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.3 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 5.0 mm 386.7-0.5 OD7 Ultra Narrow Bandpass Filter Item Number 7085 Angle of Incidence 0 Degrees Center Wavelength 386.7 nm Nominal FWHM < 0.6 nm Transmission Band(s)† 386.7 nm > 80% T Absolute Blocking Level OD7 Blocking Range(s)* OD7 (By Design): 300 to 367 nm, 407 to 900 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.3 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 5.0 mm 386.74-0.3 OD6 Ultra Narrow Bandpass Filter Item Number 7068 Angle of Incidence 0 Degrees Center Wavelength 386.74 nm +0.4 / -0.1 nm FWHM < 0.35 nm Transmission Band(s)† Peak> 70% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 200 to 367 nm, 407 to 1200 nm Filter Design Single Cavity Substrate Type Fused Silica Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 386.85-0.9 OD6 Ultra Narrow Bandpass Filter Item Number 7241 Angle of Incidence 0 Degrees Center Wavelength 386.85 nm Nominal FWHM < 1.1 nm Transmission Band(s)† 386.85 nm > 85% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 200 to 378 nm, 396 to 1200 nm Filter Design Multi-Cavity Substrate Type Fused Silica Dimensions 25.3 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 5.0 mm 392.55-0.37 OD6 Ultra Narrow Bandpass Filter Item Number 7242 Angle of Incidence 0 Degrees Center Wavelength 392.55 nm Nominal FWHM < 0.45 nm Transmission Band(s)† 392.55 nm > 80% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 300 to 385 nm, 401 to 1200 nm Filter Design Multi-Cavity Substrate Type N-BK7 Dimensions 32.0 mm Diameter Filter Thickness 3.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 7.0 mm 393.44-0.37 OD6 Ultra Narrow Bandpass Filter Item Number 7332 Angle of Incidence 0 Degrees Center Wavelength 393.44 nm Nominal FWHM < 0.45 nm Transmission Band(s)† 393.44 nm > 80% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 300 to 385 nm, 402 to 1200 nm Filter Design Multi-Cavity Substrate Type N-BK7 Dimensions 30.0 mm Diameter Filter Thickness 3.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 5.0 mm 395.1-1.3 OD5 Ultra Narrow Bandpass Filter Item Number 7243 Angle of Incidence 0 Degrees Center Wavelength 395.1 nm Nominal FWHM < 1.5 nm Transmission Band(s)† 395.1 nm > 80% T Absolute Blocking Level OD5 Blocking Range(s)* OD5: 300 to 386 nm, 404 to 1200 nm Filter Design Multi-Cavity Substrate Type N-BK7 Dimensions 32.0 mm Diameter Filter Thickness 3.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 7.0 mm 395.7-0.3 OD12 Ultra Narrow Bandpass Filter Item Number 7348 Angle of Incidence 0 Degrees Center Wavelength 395.7 nm Nominal FWHM < 0.4 nm Transmission Band(s)† 395.7 nm > 70% T Absolute Blocking Level OD12 Blocking Range(s)* OD12 (By Design): 353 to 389 nm, 403 to 443 nm, 485 to 540 nm; OD5: 300 to 353 nm, 443 to 485 nm, 540 to 1100 nm Filter Design Multi-Cavity Substrate Type Fused Silica Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 395.9-0.3 OD12 Ultra Narrow Bandpass Filter Item Number 7357 Angle of Incidence 0 Degrees Center Wavelength 395.9 nm Nominal FWHM < 0.4 nm Transmission Band(s)† 395.9 nm > 70% T Absolute Blocking Level OD12 Blocking Range(s)* OD12 (By Design): 353 to 389 nm, 403 to 443 nm, 485 to 540 nm; OD5: 300 to 353 nm, 443 to 485 nm, 540 to 1100 nm Filter Design Multi-Cavity Substrate Type Fused Silica Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 396-0.3 OD12 Ultra Narrow Bandpass Filter Item Number 7358 Angle of Incidence 0 Degrees Center Wavelength 396 nm Nominal FWHM < 0.4 nm Transmission Band(s)† 396 nm > 70% T Absolute Blocking Level OD12 Blocking Range(s)* OD12 (By Design): 353 to 389 nm, 403 to 443 nm, 485 to 540 nm; OD5: 300 to 353 nm, 443 to 485 nm, 540 to 1100 nm Filter Design Multi-Cavity Substrate Type Fused Silica Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 396.1-0.3 OD12 Ultra Narrow Bandpass Filter Item Number 7611 Angle of Incidence 0 Degrees Center Wavelength 396.1 nm Nominal FWHM < 0.4 nm Transmission Band(s)† 396.1 nm > 70% T Absolute Blocking Level OD12 Blocking Range(s)* OD12 (By Design): 353 to 389 nm, 403 to 443 nm, 485 to 540 nm; OD5: 300 to 353 nm, 443 to 485 nm, 540 to 1100 nm Filter Design Multi-Cavity Substrate Type Fused Silica Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 396.92-0.37 OD6 Ultra Narrow Bandpass Filter Item Number 7335 Angle of Incidence 0 Degrees Center Wavelength 396.92 nm Nominal FWHM < 0.45 nm Transmission Band(s)† 396.92 nm > 85% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 300 to 388 nm, 406 to 1200 nm Filter Design Multi-Cavity Substrate Type N-BK7 Dimensions 30.0 mm Diameter Filter Thickness 3.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 5.0 mm 397.2-0.37 OD6 Ultra Narrow Bandpass Filter Item Number 7556 Angle of Incidence 0 Degrees Center Wavelength 397.2 nm Nominal FWHM < 0.45 nm Transmission Band(s)† 397.2 nm > 80% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 300 to 389 nm, 406 to 1200 nm Filter Design Multi-Cavity Substrate Type N-BK7 Dimensions 30.0 mm Diameter Filter Thickness 3.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 5.0 mm 397.5-0.37 OD6 Ultra Narrow Bandpass Filter Item Number 7555 Angle of Incidence 0 Degrees Center Wavelength 397.5 nm Nominal FWHM < 0.45 nm Transmission Band(s)† 397.5 nm > 80% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 300 to 389 nm, 406 to 1200 nm Filter Design Multi-Cavity Substrate Type N-BK7 Dimensions 30.0 mm Diameter Filter Thickness 3.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 5.0 m 397.7-0.37 OD6 Ultra Narrow Bandpass Filter Item Number 7215 Angle of Incidence 0 Degrees Center Wavelength 397.7 nm Nominal FWHM < 0.45 nm Transmission Band(s)† 397.7 nm > 80% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 300 to 389 nm, 406 to 1200 nm Filter Design Multi-Cavity Substrate Type N-BK7 Dimensions 32.0 mm Diameter Filter Thickness 3.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 7.0 mm 397.8-0.37 OD6 Ultra Narrow Bandpass Filter Item Number 7557 Angle of Incidence 0 Degrees Center Wavelength 397.8 nm Nominal FWHM < 0.45 nm Transmission Band(s)† 397.8 nm > 80% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 300 to 389 nm, 406 to 1200 nm Filter Design Multi-Cavity Substrate Type N-BK7 Dimensions 30.0 mm Diameter Filter Thickness 3.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 5.0 mm 400nm 400-0.37 OD6 Ultra Narrow Bandpass Filter Item Number 7329 Angle of Incidence 0 Degrees Center Wavelength 400 nm Nominal FWHM < 0.45 nm Transmission Band(s)† 400 nm > 80% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 300 to 391 nm, 409 to 1200 nm Filter Design Multi-Cavity Substrate Type N-BK7 Dimensions 30.0 mm Diameter Filter Thickness 3.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 5.0 mm 405-2 OD4 Ultra Narrow Bandpass Filter Item Number 7244 Angle of Incidence 0 Degrees Center Wavelength 405 nm Nominal FWHM < 2.3 nm Transmission Band(s)† 405 nm > 85% T Absolute Blocking Level OD4 Blocking Range(s)* OD4: 200 to 395 nm, 415 to 1200 nm Filter Design Multi-Cavity Substrate Type Polished Borofloat® Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 405-2 OD4 Ultra Narrow Bandpass Filter Item Number 7702 Angle of Incidence 0 Degrees Center Wavelength 405 nm Nominal FWHM < 2.3 nm Transmission Band(s)† 405 nm > 85% T Absolute Blocking Level OD4 Blocking Range(s)* OD4: 200 to 395 nm, 415 to 1200 nm Filter Design Multi-Cavity Substrate Type Polished Borofloat® Dimensions 12.5 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 407.54-0.3 OD6 Ultra Narrow Bandpass Filter Item Number 7069 Angle of Incidence 0 Degrees Center Wavelength 407.54 nm +0.4 / -0.1 nm FWHM < 0.35 nm Transmission Band(s)† Peak> 70% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 200 to 387 nm, 428 to 1200 nm Filter Design Single Cavity Substrate Type Fused Silica Dimensions 25.3 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 5.0 mm 407.6-1 OD7 Ultra Narrow Bandpass Filter Item Number 7086 Angle of Incidence 0 Degrees Center Wavelength 407.6 nm Nominal FWHM < 1.2 nm Transmission Band(s)† 407.6 nm > 90% T Absolute Blocking Level OD7 Blocking Range(s)* OD7 (By Design): 300 to 387 nm, 427 to 900 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.3 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 5.0 mm 407.66-1 OD6 Ultra Narrow Bandpass Filter Item Number 7245 Angle of Incidence 0 Degrees Center Wavelength 407.66 nm Nominal FWHM < 1.2 nm Transmission Band(s)† 407.66 nm > 90% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 200 to 398 nm, 418 to 1200 nm Filter Design Multi-Cavity Substrate Type Fused Silica Dimensions 25.3 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 5.0 mm 407.8-1 OD6 Ultra Narrow Bandpass Filter Item Number 7564 Angle of Incidence 0 Degrees Center Wavelength 407.8 nm Nominal FWHM < 1.2 nm Transmission Band(s)† 407.8 nm > 90% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 200 to 398 nm, 418 to 1200 nm Filter Design Multi-Cavity Substrate Type Fused Silica Dimensions 25.3 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 5.0 mm 410.3-1.1 OD5 Ultra Narrow Bandpass Filter Item Number 7034 Angle of Incidence 0 Degrees Center Wavelength 410.3 nm Nominal FWHM < 1.3 nm Transmission Band(s)† 410.3 nm > 85% T Absolute Blocking Level OD5 Blocking Range(s)* OD5: 200 to 397 nm, 423 to 600 nm; OD4: 600 to 1100 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Unmounted 410.3-1.1 OD5 Ultra Narrow Bandpass Filter Item Number 7033 Angle of Incidence 0 Degrees Center Wavelength 410.3 nm Nominal FWHM < 1.3 nm Transmission Band(s)† 410.3 nm > 85% T Absolute Blocking Level OD5 Blocking Range(s)* OD5: 200 to 397 nm, 423 to 600 nm; OD4: 600 to 1100 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 50.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 416.06-0.5 OD6 Ultra Narrow Bandpass Filter Item Number 7246 Angle of Incidence 0 Degrees Center Wavelength 416.06 nm Nominal FWHM < 0.6 nm Transmission Band(s)† 416.06 nm > 85% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 350 to 407 nm, 425 to 700 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.3 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 5.0 mm 434-2 OD4 Ultra Narrow Bandpass Filter Item Number 7344 Angle of Incidence 0 Degrees Center Wavelength 434 nm Nominal FWHM < 2.3 nm Transmission Band(s)† 434 nm > 90% T Absolute Blocking Level OD4 Blocking Range(s)* OD4: 200 to 424 nm, 444 to 1100 nm Filter Design Multi-Cavity Substrate Type Fused Silica Dimensions 12.5 mm Diameter Filter Thickness 2.0 mm Assembly Type Unmounted 434-2 OD4 Ultra Narrow Bandpass Filter Item Number 7345 Angle of Incidence 0 Degrees Center Wavelength 434 nm Nominal FWHM < 2.3 nm Transmission Band(s)† 434 nm > 90% T Absolute Blocking Level OD4 Blocking Range(s)* OD4: 200 to 424 nm, 444 to 1100 nm Filter Design Multi-Cavity Substrate Type Fused Silica Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 458-2 OD5 Ultra Narrow Bandpass Filter Item Number 7023 Angle of Incidence 0 Degrees Center Wavelength 458 nm Nominal FWHM < 2.3 nm Transmission Band(s)† 458 nm > 90% T Absolute Blocking Level OD5 Blocking Range(s)* OD5: 410 to 448 nm, 468 to 510 nm Filter Design Multi-Cavity Substrate Type Fused Silica Dimensions 10.0 mm Diameter Filter Thickness 1.05 mm Assembly Type Unmounted 458-2 OD5 Ultra Narrow Bandpass Filter Item Number 7024 Angle of Incidence 0 Degrees Center Wavelength 458 nm Nominal FWHM < 2.3 nm Transmission Band(s)† 458 nm > 90% T Absolute Blocking Level OD5 Blocking Range(s)* OD5: 410 to 448 nm, 468 to 510 nm Filter Design Multi-Cavity Substrate Type Fused Silica Dimensions 25.0 mm Diameter Filter Thickness 1.05 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 465-2 OD4 Ultra Narrow Bandpass Filter Item Number 7346 Angle of Incidence 0 Degrees Center Wavelength 465 nm Nominal FWHM < 2.2 nm Transmission Band(s)† 465 nm > 95% T Absolute Blocking Level OD4 Blocking Range(s)* OD4: 200 to 459 nm, 471 to 1200 nm Filter Design Multi-Cavity Substrate Type Fused Silica Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 465-2 OD4 Ultra Narrow Bandpass Filter Item Number 7247 Angle of Incidence 0 Degrees Center Wavelength 465 nm Nominal FWHM < 2.2 nm Transmission Band(s)† 465 nm > 95% T Absolute Blocking Level OD4 Blocking Range(s)* OD4: 200 to 459 nm, 471 to 1200 nm Filter Design Multi-Cavity Substrate Type Fused Silica Dimensions 50.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 473-1.5 OD7 Ultra Narrow Bandpass Filter Item Number 7248 Angle of Incidence 0 Degrees Center Wavelength 473 nm Nominal FWHM < 1.7 nm Transmission Band(s)† 473 nm > 90% T Absolute Blocking Level OD7 Blocking Range(s)* OD7 (By Design): 475 to 585 nm Filter Design Multi-Cavity Substrate Type Polished Borofloat® Dimensions 25.4 mm Diameter Filter Thickness 2.0 mm Assembly Type Unmounted 484.3-0.6 OD5 Ultra Narrow Bandpass Filter Item Number 7318 Angle of Incidence 0 Degrees Center Wavelength 484.3 nm Nominal FWHM < 0.8 nm Transmission Band(s)† 484.3 nm > 85% T Absolute Blocking Level OD5 Blocking Range(s)* OD5: 300 to 474 nm, 495 to 1200 nm Filter Design Multi-Cavity Substrate Type N-BK7 Dimensions 32.0 mm Diameter Filter Thickness 3.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 7.0 mm 484.7-0.6 OD5 Ultra Narrow Bandpass Filter Item Number 7249 Angle of Incidence 0 Degrees Center Wavelength 484.7 nm Nominal FWHM < 0.7 nm Transmission Band(s)† 484.7 nm > 85% T Absolute Blocking Level OD5 Blocking Range(s)* OD5: 300 to 474 nm, 495 to 1200 nm Filter Design Multi-Cavity Substrate Type N-BK7 Dimensions 32.0 mm Diameter Filter Thickness 3.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 7.0 mm 485.8-0.44 OD6 Ultra Narrow Bandpass Filter Item Number 7541 Angle of Incidence 0 Degrees Center Wavelength 485.8 nm Nominal FWHM < 0.5 nm Transmission Band(s)† 485.8 nm > 85% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 300 to 476 nm, 497 to 1200 nm Filter Design Multi-Cavity Substrate Type N-BK7 Dimensions 30.0 mm Diameter Filter Thickness 3.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 5.0 mm 486-0.44 OD6 Ultra Narrow Bandpass Filter Item Number 7542 Angle of Incidence 0 Degrees Center Wavelength 486 nm Nominal FWHM < 0.5 nm Transmission Band(s)† 486 nm > 85% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 300 to 476 nm, 497 to 1200 nm Filter Design Multi-Cavity Substrate Type N-BK7 Dimensions 30.0 mm Diameter Filter Thickness 3.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 5.0 mm 486.2-0.44 OD6 Ultra Narrow Bandpass Filter Item Number 7334 Angle of Incidence 0 Degrees Center Wavelength 486.2 nm Nominal FWHM < 0.5 nm Transmission Band(s)† 486.2 nm > 85% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 300 to 476 nm, 497 to 1200 nm Filter Design Multi-Cavity Substrate Type N-BK7 Dimensions 30.0 mm Diameter Filter Thickness 3.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 5.0 mm 486.4-0.44 OD6 Ultra Narrow Bandpass Filter Item Number 7543 Angle of Incidence 0 Degrees Center Wavelength 486.4 nm Nominal FWHM < 0.5 nm Transmission Band(s)† 486.4 nm > 85% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 300 to 476 nm, 497 to 1200 nm Filter Design Multi-Cavity Substrate Type N-BK7 Dimensions 30.0 mm Diameter Filter Thickness 3.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 5.0 mm 488-2 OD4 Ultra Narrow Bandpass Filter Item Number 7250 Angle of Incidence 0 Degrees Center Wavelength 488 nm Nominal FWHM < 2.2 nm Transmission Band(s)† 488 nm > 95% T Absolute Blocking Level OD4 Blocking Range(s)* OD4: 200 to 482 nm, 494 to 1200 nm Filter Design Multi-Cavity Substrate Type Fused Silica Dimensions 50.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 500nm 514-2 OD4 Ultra Narrow Bandpass Filter Item Number 7010 Angle of Incidence 0 Degrees Center Wavelength 514 nm Nominal FWHM < 2.3 nm Transmission Band(s)† 514 nm > 90% T Absolute Blocking Level OD4 Blocking Range(s)* OD4: 200 to 507 nm, 521 to 1200 nm Filter Design Multi-Cavity Substrate Type Fused Silica Dimensions 50.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 514-2 OD4 Ultra Narrow Bandpass Filter Item Number 7011 Angle of Incidence 0 Degrees Center Wavelength 514 nm Nominal FWHM < 2.3 nm Transmission Band(s)† 514 nm > 90% T Absolute Blocking Level OD4 Blocking Range(s)* OD4: 200 to 507 nm, 521 to 1200 nm Filter Design Multi-Cavity Substrate Type Fused Silica Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 523.5-0.6 OD6 Ultra Narrow Bandpass Filter Item Number 7673 Angle of Incidence 0 Degrees Center Wavelength 523.5 nm Nominal FWHM < 0.7 nm Transmission Band(s)† 523.5 nm > 80% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 200 to 513 nm, 532 to 1100 nm Filter Design Multi-Cavity Substrate Type Polished Borofloat® Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 523.5-0.6 OD6 Ultra Narrow Bandpass Filter Item Number 7042 Angle of Incidence 0 Degrees Center Wavelength 523.5 nm Nominal FWHM < 0.7 nm Transmission Band(s)† 523.5 nm > 80% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 200 to 513 nm, 532 to 1100 nm Filter Design Multi-Cavity Substrate Type Polished Borofloat® Dimensions 50.4 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 524.89-1 OD3 Ultra Narrow Bandpass Filter Item Number 7251 Angle of Incidence 0 Degrees Center Wavelength 524.89 nm Nominal FWHM < 1.2 nm Transmission Band(s)† 524.89 nm > 80% T Absolute Blocking Level OD3 Blocking Range(s)* OD3: 480 to 520 nm, 530 to 1500 nm Filter Design Multi-Cavity Substrate Type Polished Borofloat® Dimensions 25.4 mm Diameter Filter Thickness 2.0 mm Assembly Type Unmounted 530.2-2 OD6 Ultra Narrow Bandpass Filter Item Number 7059 Angle of Incidence 0 Degrees Center Wavelength 530.2 nm Nominal FWHM < 2.3 nm Transmission Band(s)† 530.2 nm > 90% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 480 to 518 nm, 532.12 nm, 542 to 590 nm; OD4: 350 to 480 nm, 590 to 1080 nm Filter Design Multi-Cavity Substrate Type Fused Silica Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 532-1.5 OD6 Ultra Narrow Bandpass Filter Item Number 7359 Angle of Incidence 0 Degrees Center Wavelength 532 nm Nominal FWHM < 1.7 nm Transmission Band(s)† 532 nm > 90% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 300 to 520 nm, 544 to 900 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 36.5 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 532.0-1 OD6 Ultra Narrow Bandpass Filter Item Number 7627 Angle of Incidence 0 Degrees Center Wavelength 532.0 nm Nominal FWHM < 1.2 nm Transmission Band(s)† 532.0 nm > 95% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 200 to 520 nm, 544 to 1200 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.3 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 5.0 mm 532-1 OD6 Ultra Narrow Bandpass Filter Item Number 7058 Angle of Incidence 0 Degrees Center Wavelength 532 nm Nominal FWHM < 1.2 nm Transmission Band(s)† 532 nm > 85% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 200 to 524 nm, 540 to 740 nm; OD3: 740 to 1200 nm Filter Design Multi-Cavity Substrate Type Fused Silica Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 532.0-0.15 OD6 Ultra Narrow Bandpass Filter Item Number 7235 Angle of Incidence 0 Degrees Center Wavelength 532.0 nm +0.4 / -0.1 nm FWHM < 0.2 nm Transmission Band(s)† Peak> 85% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 200 to 496 nm, 569 to 1200 nm Filter Design Single Cavity Substrate Type Fused Silica Dimensions 25.0 mm Diameter Filter Thickness 5.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 6.5 mm 532-1.5 OD6 Ultra Narrow Bandpass Filter Item Number 7360 Angle of Incidence 0 Degrees Center Wavelength 532 nm Nominal FWHM < 1.7 nm Transmission Band(s)† 532 nm > 90% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 300 to 520 nm, 544 to 900 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 532.0-0.25 OD6 Ultra Narrow Bandpass Filter Item Number 7690 Angle of Incidence 0 Degrees Center Wavelength 532.0 nm Nominal FWHM < 0.3 nm Transmission Band(s)† 532.0 nm > 80% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 200 to 521 nm, 544 to 950 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 532.0-0.25 OD6 Ultra Narrow Bandpass Filter Item Number 7549 Angle of Incidence 0 Degrees Center Wavelength 532.0 nm Nominal FWHM < 0.3 nm Transmission Band(s)† 532.0 nm > 80% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 200 to 521 nm, 544 to 950 nm Filter Design Multi-Cavity Substrate Type Fused Silica Dimensions 38.1 mm Diameter Filter Thickness 5.0 mm Assembly Type Unmounted 532.0-0.15 OD6 Ultra Narrow Bandpass Filter Item Number 7081 Angle of Incidence 0 Degrees Center Wavelength 532.0 nm +0.4 / -0.1 nm FWHM < 0.2 nm Transmission Band(s)† Peak> 85% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 200 to 496 nm, 569 to 1200 nm Filter Design Single Cavity Substrate Type Fused Silica Dimensions 35.0 mm Diameter Filter Thickness 5.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 6.5 mm 532.07-1 OD4 Ultra Narrow Bandpass Filter Item Number 7008 Angle of Incidence 0 Degrees Center Wavelength 532.07 nm Nominal FWHM < 1.2 nm Transmission Band(s)† 532.07 nm > 85% T Absolute Blocking Level OD4 Blocking Range(s)* OD4: 350 to 512 nm, 547 to 900 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 50.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Unmounted 532.07-1 OD4 Ultra Narrow Bandpass Filter Item Number 7009 Angle of Incidence 0 Degrees Center Wavelength 532.07 nm Nominal FWHM < 1.2 nm Transmission Band(s)† 532.07 nm > 85% T Absolute Blocking Level OD4 Blocking Range(s)* OD4: 350 to 512 nm, 547 to 900 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 532.08-1 OD6 Ultra Narrow Bandpass Filter Item Number 7353 Angle of Incidence 0 Degrees Center Wavelength 532.08 nm Nominal FWHM < 1.2 nm Transmission Band(s)† 532.08 nm > 95% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 200 to 520 nm, 544 to 1200 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.3 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 5.0 mm 532.08-0.17 OD5 Ultra Narrow Bandpass Filter Item Number 7056 Angle of Incidence 0 Degrees Center Wavelength 532.08 nm +0.4 / -0.1 nm FWHM < 0.2 nm Transmission Band(s)† Peak> 80% T Absolute Blocking Level OD5 Blocking Range(s)* OD5: 200 to 512 nm, 552 to 1150 nm; OD4: 1150 to 1200 nm Filter Design Single Cavity Substrate Type Fused Silica Dimensions 24.2 mm Diameter Filter Thickness 2.0 mm Assembly Type Unmounted 532.08-1 OD8 Ultra Narrow Bandpass Filter Item Number 7654 Angle of Incidence 0 Degrees Center Wavelength 532.08 nm Nominal FWHM < 1.2 nm Transmission Band(s)† 532.08 nm > 90% T Absolute Blocking Level OD8 Blocking Range(s)* OD8 (By Design): 1064.15 nm, 354.72 nm; OD6: 200 to 523 nm, 541 to 1200 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.3 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 5.0 mm 532.1-0.2 OD6 Ultra Narrow Bandpass Filter Item Number 7252 Angle of Incidence 0 Degrees Center Wavelength 532.1 nm Nominal FWHM < 0.25 nm Transmission Band(s)† 532.1 nm > 80% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 350 to 521 nm, 543 to 1200 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 532.1-0.3 OD5 Ultra Narrow Bandpass Filter Item Number 7016 Angle of Incidence 0 Degrees Center Wavelength 532.1 nm Nominal FWHM < 0.35 nm Transmission Band(s)† 532.1 nm > 75% T Absolute Blocking Level OD5 Blocking Range(s)* OD5: 350 to 521 nm, 543 to 900 nm Filter Design Multi-Cavity Substrate Type Fused Silica Dimensions 25.3 mm Diameter Filter Thickness 2.0 mm Assembly Type Unmounted 532.1-0.2 OD6 Ultra Narrow Bandpass Filter Item Number 7252 Angle of Incidence 0 Degrees Center Wavelength 532.1 nm Nominal FWHM < 0.25 nm Transmission Band(s)† 532.1 nm > 80% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 350 to 521 nm, 543 to 1200 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 532.2-0.15 OD6 Ultra Narrow Bandpass Filter Item Number 7316 Angle of Incidence 0 Degrees Center Wavelength 532.2 nm +0.4 / -0.1 nm FWHM < 0.2 nm Transmission Band(s)† Peak> 85% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 200 to 496 nm, 569 to 1200 nm Filter Design Single Cavity Substrate Type Fused Silica Dimensions 25.0 mm Diameter Filter Thickness 5.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 6.5 mm 532.2-0.2 OD6 Ultra Narrow Bandpass Filter Item Number 7562 Angle of Incidence 0 Degrees Center Wavelength 532.2 nm Nominal FWHM < 0.25 nm Transmission Band(s)† 532.2 nm > 80% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 350 to 521 nm, 543 to 1200 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 532.2-0.25 OD6 Ultra Narrow Bandpass Filter Item Number 7691 Angle of Incidence 0 Degrees Center Wavelength 532.2 nm Nominal FWHM < 0.3 nm Transmission Band(s)† 532.2 nm > 80% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 200 to 521 nm, 544 to 950 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 532.2-0.3 OD6 Ultra Narrow Bandpass Filter Item Number 7041 Angle of Incidence 0 Degrees Center Wavelength 532.2 nm Nominal FWHM < 0.35 nm Transmission Band(s)† 532.2 nm > 80% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 200 to 524 nm, 540 to 1100 nm Filter Design Multi-Cavity Substrate Type Polished Borofloat® Dimensions 25.3 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 5.0 mm 532.2-1 OD6 Ultra Narrow Bandpass Filter Item Number 7628 Angle of Incidence 0 Degrees Center Wavelength 532.2 nm Nominal FWHM < 1.2 nm Transmission Band(s)† 532.2 nm > 95% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 200 to 520 nm, 544 to 1200 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.3 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 5.0 mm 532.21-0.25 OD6 Ultra Narrow Bandpass Filter Item Number 7255 Angle of Incidence 0 Degrees Center Wavelength 532.21 nm Nominal FWHM < 0.3 nm Transmission Band(s)† 532.21 nm > 80% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 200 to 521 nm, 544 to 950 nm Filter Design Multi-Cavity Substrate Type Fused Silica Dimensions 25.0 mm Diameter Filter Thickness 5.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 6.5 mm 532.21-0.25 OD6 Ultra Narrow Bandpass Filter Item Number 7254 Angle of Incidence 0 Degrees Center Wavelength 532.21 nm Nominal FWHM < 0.3 nm Transmission Band(s)† 532.21 nm > 80% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 200 to 521 nm, 544 to 950 nm Filter Design Multi-Cavity Substrate Type Fused Silica Dimensions 38.1 mm Diameter Filter Thickness 5.0 mm Assembly Type Unmounted 532.3-0.3 OD5 Ultra Narrow Bandpass Filter Item Number 7687 Angle of Incidence 0 Degrees Center Wavelength 532.3 nm Nominal FWHM < 0.35 nm Transmission Band(s)† 532.3 nm > 75% T Absolute Blocking Level OD5 Blocking Range(s)* OD5: 350 to 521 nm, 543 to 900 nm Filter Design Multi-Cavity Substrate Type Fused Silica Dimensions 25.3 mm Diameter Filter Thickness 2.0 mm Assembly Type Unmounted 532.3-0.2 OD7 Ultra Narrow Bandpass Filter Item Number 7253 Angle of Incidence 0 Degrees Center Wavelength 532.3 nm +0.4 / -0.1nm FWHM < 0.25 nm Transmission Band(s)† Peak> 80% T Absolute Blocking Level OD7 Blocking Range(s)* OD7 (By Design): 300 to 502 nm, 562 to 900 nm Filter Design Single Cavity Substrate Type Borofloat® Dimensions 50.4 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 532.3-0.3 OD6 Ultra Narrow Bandpass Filter Item Number 7566 Angle of Incidence 0 Degrees Center Wavelength 532.3 nm Nominal FWHM < 0.35 nm Transmission Band(s)† 532.3 nm > 80% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 200 to 524 nm, 540 to 1100 nm Filter Design Multi-Cavity Substrate Type Polished Borofloat® Dimensions 25.3 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 5.0 mm 532.5-2.25 OD3 Ultra Narrow Bandpass Filter Item Number 7078 Angle of Incidence 0 Degrees Center Wavelength 532.5 nm Nominal FWHM < 2.5 nm Transmission Band(s)† 532.5 nm > 90% T Absolute Blocking Level OD3 Blocking Range(s)* OD3: 450 to 526 nm, 540 to 650 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Unmounted 532.6-0.2 OD6 Ultra Narrow Bandpass Filter Item Number 7622 Angle of Incidence 0 Degrees Center Wavelength 532.6 nm Nominal FWHM < 0.3 nm Transmission Band(s)† 532.6 nm > 85% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 200 to 522 nm, 543 to 1200 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 50.6 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 532.6-0.2 OD6 Ultra Narrow Bandpass Filter Item Number 7623 Angle of Incidence 0 Degrees Center Wavelength 532.6 nm Nominal FWHM < 0.3 nm Transmission Band(s)† 532.6 nm > 85% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 200 to 522 nm, 543 to 1200 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 570-2 OD4 Ultra Narrow Bandpass Filter Item Number 7037 Angle of Incidence 0 Degrees Center Wavelength 570 nm Nominal FWHM < 2.3 nm Transmission Band(s)† 570 nm > 90% T Absolute Blocking Level OD4 Blocking Range(s)* OD4: 300 to 557 nm, 583 to 1100 nm Filter Design Multi-Cavity Substrate Type Fused Silica Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 6.5 mm 572.6-2 OD4 Ultra Narrow Bandpass Filter Item Number 7038 Angle of Incidence 0 Degrees Center Wavelength 572.6 nm Nominal FWHM < 2.3 nm Transmission Band(s)† 572.6 nm > 90% T Absolute Blocking Level OD4 Blocking Range(s)* OD4: 200 to 559 nm, 586 to 1100 nm Filter Design Multi-Cavity Substrate Type Fused Silica Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 6.5 mm 587.6-1.5 OD6 Ultra Narrow Bandpass Filter Item Number 7077 Angle of Incidence 0 Degrees Center Wavelength 587.6 nm Nominal FWHM < 1.7 nm Transmission Band(s)† 587.6 nm > 90% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 200 to 573 nm, 603 to 1100 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 20.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Unmounted 587.63-0.47 OD6 Ultra Narrow Bandpass Filter Item Number 7331 Angle of Incidence 0 Degrees Center Wavelength 587.63 nm Nominal FWHM < 0.55 nm Transmission Band(s)† 587.63 nm > 85% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 300 to 575 nm, 600 to 1200 nm Filter Design Multi-Cavity Substrate Type N-BK7 Dimensions 30.0 mm Diameter Filter Thickness 3.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 5.0 mm 589.5-1 OD4 Ultra Narrow Bandpass Filter Item Number 7604 Angle of Incidence 0 Degrees Center Wavelength 589 nm Nominal FWHM < 1.2 nm Transmission Band(s)† 589 nm > 90% T Absolute Blocking Level OD4 Blocking Range(s)* OD4: 400 to 576 nm, 603 to 1000 nm Filter Design No Substrate Type Polished Borofloat® Dimensions 25.3 mm Diameter Filter Thickness 3.3 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 5.0 mm 589.16-0.5 OD4 Ultra Narrow Bandpass Filter Item Number 7256 Angle of Incidence 0 Degrees Center Wavelength 589.16 nm Nominal FWHM < 0.6 nm Transmission Band(s)† 589.16 nm > 90% T Absolute Blocking Level OD4 Blocking Range(s)* OD4: 300 to 577 nm, 602 to 2000 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.3 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 5.0 mm 589.2-2 OD4 Ultra Narrow Bandpass Filter Item Number 7257 Angle of Incidence 0 Degrees Center Wavelength 589.2 nm Nominal FWHM < 2.3 nm Transmission Band(s)† 589.2 nm > 95% T Absolute Blocking Level OD4 Blocking Range(s)* OD4: 400 to 576 nm, 603 to 1400 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 589.45-1 OD6 Ultra Narrow Bandpass Filter Item Number 7258 Angle of Incidence 0 Degrees Center Wavelength 589.45 nm Nominal FWHM < 1.2 nm Transmission Band(s)† 589.45 nm > 90% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 200 to 577 nm, 603 to 1200 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.3 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 5.0 mm 589.5-1 OD4 Ultra Narrow Bandpass Filter Item Number 7072 Angle of Incidence 0 Degrees Center Wavelength 589.5 nm Nominal FWHM < 1.2 nm Transmission Band(s)† 589.5 nm > 90% T Absolute Blocking Level OD4 Blocking Range(s)* OD4: 400 to 576 nm, 603 to 1000 nm Filter Design Multi-Cavity Substrate Type Polished Borofloat® Dimensions 25.3 mm Diameter Filter Thickness 3.3 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 5.0 mm 589.7-1 OD4 Ultra Narrow Bandpass Filter Item Number 7603 Angle of Incidence 0 Degrees Center Wavelength 589.7 nm Nominal FWHM < 1.2 nm Transmission Band(s)† 589.7 nm > 90% T Absolute Blocking Level OD4 Blocking Range(s)* OD4: 400 to 576 nm, 603 to 1000 nm Filter Design Multi-Cavity Substrate Type Polished Borofloat® Dimensions 25.3 mm Diameter Filter Thickness 3.3 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 5.0 mm 600nm 607.4-0.3 OD8 Ultra Narrow Bandpass Filter Item Number 7354 Angle of Incidence 0 Degrees Center Wavelength 607.4 nm Nominal FWHM < 0.35 nm Transmission Band(s)† 607.4 nm > 85% T Absolute Blocking Level OD8 Blocking Range(s)* OD8 (By Design): 1064.15 nm, 354.72 nm, 532.08 nm; OD6: 200 to 595 nm, 620 to 1200 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.3 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 5.0 mm 607.6-1 OD7 Ultra Narrow Bandpass Filter Item Number 7087 Angle of Incidence 0 Degrees Center Wavelength 607.6 nm Nominal FWHM < 1.2 nm Transmission Band(s)† 607.6 nm > 90% T Absolute Blocking Level OD7 Blocking Range(s)* OD7 (By Design): 300 to 587 nm, 627 to 900 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.3 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 5.0 mm 607.7-1.6 OD6 Ultra Narrow Bandpass Filter Item Number 7070 Angle of Incidence 0 Degrees Center Wavelength 607.7 nm Nominal FWHM < 1.8 nm Transmission Band(s)† 607.7 nm > 95% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 400 to 587 nm, 638 to 1200 nm; OD5: 200 to 400 nm Filter Design Multi-Cavity Substrate Type Fused Silica Dimensions 25.3 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 5.0 mm 608-1 OD7 Ultra Narrow Bandpass Filter Item Number 7617 Angle of Incidence 0 Degrees Center Wavelength 608 nm Nominal FWHM < 1.2 nm Transmission Band(s)† 608 nm > 90% T Absolute Blocking Level OD7 Blocking Range(s)* OD7 (By Design): 300 to 587 nm, 627 to 900 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.3 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 5.0 mm 608.5-1 OD7 Ultra Narrow Bandpass Filter Item Number 7618 Angle of Incidence 0 Degrees Center Wavelength 608.5 nm Nominal FWHM < 1.2 nm Transmission Band(s)† 608.5 nm > 90% T Absolute Blocking Level OD7 Blocking Range(s)* OD7 (By Design): 300 to 587 nm, 627 to 900 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.3 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 5.0 mm 630-0.4 OD4 Ultra Narrow Bandpass Filter Item Number 7341 Angle of Incidence 0 Degrees Center Wavelength 630 nm Nominal FWHM < 0.5 nm Transmission Band(s)† 630 nm > 85% T Absolute Blocking Level OD4 Blocking Range(s)* OD4: 300 to 617 nm, 643 to 1200 nm Filter Design Multi-Cavity Substrate Type N-BK7 Dimensions 50.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 630.2-0.5 OD6 Ultra Narrow Bandpass Filter Item Number 7259 Angle of Incidence 0 Degrees Center Wavelength 630.2 nm Nominal FWHM < 0.6 nm Transmission Band(s)† 630.2 nm > 85% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 400 to 628 nm, 633 to 1000 nm Filter Design Multi-Cavity Substrate Type N-BK7 Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Unmounted 630.3-2 OD4 Ultra Narrow Bandpass Filter Item Number 7313 Angle of Incidence 0 Degrees Center Wavelength 630.3 nm Nominal FWHM < 2.3 nm Transmission Band(s)† 630.3 nm > 90% T Absolute Blocking Level OD4 Blocking Range(s)* OD4: 300 to 616 nm, 645 to 1200 nm Filter Design Multi-Cavity Substrate Type N-BK7 Dimensions 50.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 630.3-2 OD4 Ultra Narrow Bandpass Filter Item Number 7315 Angle of Incidence 0 Degrees Center Wavelength 630.3 nm Nominal FWHM < 2.3 nm Transmission Band(s)† 630.3 nm > 90% T Absolute Blocking Level OD4 Blocking Range(s)* OD4: 300 to 616 nm, 645 to 1200 nm Filter Design Multi-Cavity Substrate Type N-BK7 Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 649.1-1 OD4 Ultra Narrow Bandpass Filter Item Number 7260 Angle of Incidence 0 Degrees Center Wavelength 649.1 nm Nominal FWHM < 1.2 nm Transmission Band(s)† 649.1 nm > 85% T Absolute Blocking Level OD4 Blocking Range(s)* OD4: 200 to 626 nm, 672 to 1200 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 650-1 OD4 Ultra Narrow Bandpass Filter Item Number 7261 Angle of Incidence 0 Degrees Center Wavelength 650 nm Nominal FWHM < 1.2 nm Transmission Band(s)† 650 nm > 85% T Absolute Blocking Level OD4 Blocking Range(s)* OD4: 200 to 627 nm, 673 to 1200 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 652-3 OD6 Ultra Narrow Bandpass Filter Item Number 7015 Angle of Incidence 0 Degrees Center Wavelength 652 nm Nominal FWHM < 3.4 nm Transmission Band(s)† 652 nm > 90% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 590 to 640 nm, 664 to 730 nm; OD4: 250 to 590 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 50.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Unmounted 656.1-1 OD5 Ultra Narrow Bandpass Filter Item Number 7262 Angle of Incidence 0 Degrees Center Wavelength 656.1 nm Nominal FWHM < 1.2 nm Transmission Band(s)† 656.1 nm > 85% T Absolute Blocking Level OD5 Blocking Range(s)* OD5: 556 to 641 nm, 673 to 756 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 12.5 mm Diameter Filter Thickness 2.0 mm Assembly Type Unmounted 656.1-1 OD5 Ultra Narrow Bandpass Filter Item Number 7263 Angle of Incidence 0 Degrees Center Wavelength 656.1 nm Nominal FWHM < 1.2 nm Transmission Band(s)† 656.1 nm > 85% T Absolute Blocking Level OD5 Blocking Range(s)* OD5: 556 to 641 nm, 673 to 756 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 656.2-1.5 OD6 Ultra Narrow Bandpass Filter Item Number 7236 Angle of Incidence 0 Degrees Center Wavelength 656.2 nm Nominal FWHM < 1.7 nm Transmission Band(s)† 656.2 nm > 90% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 550 to 642 nm, 671 to 1100 nm; OD5: 200 to 550 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 656.3-1 OD4 Ultra Narrow Bandpass Filter Item Number 7018 Angle of Incidence 0 Degrees Center Wavelength 656.3 nm Nominal FWHM < 1.2 nm Transmission Band(s)† 656.3 nm > 90% T Absolute Blocking Level OD4 Blocking Range(s)* OD4: 200 to 643 nm, 670 to 1200 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 38.1 mm Diameter Filter Thickness 2.0 mm Assembly Type Unmounted 656.3-1 OD4 Ultra Narrow Bandpass Filter Item Number 7019 Angle of Incidence 0 Degrees Center Wavelength 656.3 nm Nominal FWHM < 1.2 nm Transmission Band(s)† 656.3 nm > 90% T Absolute Blocking Level OD4 Blocking Range(s)* OD4: 200 to 643 nm, 670 to 1200 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Unmounted 658.7-0.3 OD5 Ultra Narrow Bandpass Filter Item Number 7308 Angle of Incidence 0 Degrees Center Wavelength 658.7 nm Nominal FWHM < 0.35 nm Transmission Band(s)† 658.7 nm > 85% T Absolute Blocking Level OD5 Blocking Range(s)* OD5: 200 to 651 nm, 666 to 1200 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 50.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 659.19-0.3 OD5 Ultra Narrow Bandpass Filter Item Number 7079 Angle of Incidence 0 Degrees Center Wavelength 659.19 nm Nominal FWHM < 0.35 nm Transmission Band(s)† 659.19 nm > 85% T Absolute Blocking Level OD5 Blocking Range(s)* OD5: 200 to 651 nm, 666 to 1200 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 50.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 659.19-0.3 OD5 Ultra Narrow Bandpass Filter Item Number 7089 Angle of Incidence 0 Degrees Center Wavelength 659.19 nm Nominal FWHM < 0.35 nm Transmission Band(s)† 659.19 nm > 85% T Absolute Blocking Level OD5 Blocking Range(s)* OD5: 200 to 651 nm, 666 to 1200 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 659.4-0.3 OD5 Ultra Narrow Bandpass Filter Item Number 7310 Angle of Incidence 0 Degrees Center Wavelength 659.4 nm Nominal FWHM < 0.35 nm Transmission Band(s)† 659.4 nm > 85% T Absolute Blocking Level OD5 Blocking Range(s)* OD5: 200 to 651 nm, 666 to 1200 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 50.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 659.4-0.3 OD5 Ultra Narrow Bandpass Filter Item Number 7337 Angle of Incidence 0 Degrees Center Wavelength 659.4 nm Nominal FWHM < 0.35 nm Transmission Band(s)† 659.4 nm > 85% T Absolute Blocking Level OD5 Blocking Range(s)* OD5: 200 to 651 nm, 666 to 1200 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 659.6-0.3 OD5 Ultra Narrow Bandpass Filter Item Number 7338 Angle of Incidence 0 Degrees Center Wavelength 659.6 nm Nominal FWHM < 0.35 nm Transmission Band(s)† 659.6 nm > 85% T Absolute Blocking Level OD5 Blocking Range(s)* OD5: 200 to 651 nm, 666 to 1200 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 659.69-1 OD6 Ultra Narrow Bandpass Filter Item Number 7043 Angle of Incidence 0 Degrees Center Wavelength 659.69 nm Nominal FWHM < 1.2 nm Transmission Band(s)† 659.69 nm > 90% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 300 to 640 nm, 680 to 980 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 50.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Unmounted 659.75-1 OD6 Ultra Narrow Bandpass Filter Item Number 7044 Angle of Incidence 0 Degrees Center Wavelength 659.75 nm Nominal FWHM < 1.2 nm Transmission Band(s)† 659.75 nm > 90% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 300 to 640 nm, 680 to 980 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 50.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Unmounted 659.8-0.3 OD5 Ultra Narrow Bandpass Filter Item Number 7339 Angle of Incidence 0 Degrees Center Wavelength 659.8 nm Nominal FWHM < 0.35 nm Transmission Band(s)† 659.8 nm > 85% T Absolute Blocking Level OD5 Blocking Range(s)* OD5: 200 to 651 nm, 666 to 1200 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 659.98-1 OD6 Ultra Narrow Bandpass Filter Item Number 7045 Angle of Incidence 0 Degrees Center Wavelength 659.98 nm Nominal FWHM < 1.2 nm Transmission Band(s)† 659.98 nm > 90% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 300 to 640 nm, 680 to 980 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 50.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Unmounted 660-0.8 OD6 Ultra Narrow Bandpass Filter Item Number 7574 Angle of Incidence 0 Degrees Center Wavelength 660 nm Nominal FWHM < 1.0 nm Transmission Band(s)† 660 nm > 90% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 300 to 650 nm, 670 to 1100 nm Filter Design Multi-Cavity Substrate Type Fused Silica Dimensions 25.3 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 5.0 mm 660-0.5 OD6 Ultra Narrow Bandpass Filter Item Number 7619 Angle of Incidence 0 Degrees Center Wavelength 660 nm Nominal FWHM < 0.6 nm Transmission Band(s)† 660 nm > 85% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 300 to 650 nm, 670 to 1100 nm Filter Design Multi-Cavity Substrate Type Fused Silica Dimensions 25.3 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 5.0 mm 660.04-1 OD6 Ultra Narrow Bandpass Filter Item Number 7046 Angle of Incidence 0 Degrees Center Wavelength 660.04 nm Nominal FWHM < 1.2 nm Transmission Band(s)† 660.04 nm > 90% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 300 to 640 nm, 680 to 980 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 50.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Unmounted 660.1-0.3 OD5 Ultra Narrow Bandpass Filter Item Number 7306 Angle of Incidence 0 Degrees Center Wavelength 660.1 nm Nominal FWHM < 0.35 nm Transmission Band(s)† 660.1 nm > 85% T Absolute Blocking Level OD5 Blocking Range(s)* OD5: 200 to 651 nm, 666 to 1200 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 50.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 660.1-0.3 OD5 Ultra Narrow Bandpass Filter Item Number 7340 Angle of Incidence 0 Degrees Center Wavelength 660.1 nm Nominal FWHM < 0.35 nm Transmission Band(s)† 660.1 nm > 85% T Absolute Blocking Level OD5 Blocking Range(s)* OD5: 200 to 651 nm, 666 to 1200 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 660.29-1 OD6 Ultra Narrow Bandpass Filter Item Number 7047 Angle of Incidence 0 Degrees Center Wavelength 660.29 nm Nominal FWHM < 1.2 nm Transmission Band(s)† 660.29 nm > 90% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 300 to 640 nm, 680 to 980 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 50.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Unmounted 660.5-0.3 OD5 Ultra Narrow Bandpass Filter Item Number 7264 Angle of Incidence 0 Degrees Center Wavelength 660.5 nm Nominal FWHM < 0.35 nm Transmission Band(s)† 660.5 nm > 85% T Absolute Blocking Level OD5 Blocking Range(s)* OD5: 200 to 655 nm, 666 to 1200 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 50.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 660.5-0.3 OD5 Ultra Narrow Bandpass Filter Item Number 7265 Angle of Incidence 0 Degrees Center Wavelength 660.5 nm Nominal FWHM < 0.35 nm Transmission Band(s)† 660.5 nm > 85% T Absolute Blocking Level OD5 Blocking Range(s)* OD5: 200 to 655 nm, 666 to 1200 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 660.62-1 OD6 Ultra Narrow Bandpass Filter Item Number 7048 Angle of Incidence 0 Degrees Center Wavelength 660.62 nm Nominal FWHM < 1.2 nm Transmission Band(s)† 660.62 nm > 90% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 300 to 640 nm, 680 to 980 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 50.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Unmounted 660.67-1 OD6 Ultra Narrow Bandpass Filter Item Number 7049 Angle of Incidence 0 Degrees Center Wavelength 660.67 nm Nominal FWHM < 1.2 nm Transmission Band(s)† 660.67 nm > 90% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 300 to 640 nm, 680 to 980 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 50.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Unmounted 660.70-1 OD6 Ultra Narrow Bandpass Filter Item Number 7050 Angle of Incidence 0 Degrees Center Wavelength 660.7 nm Nominal FWHM < 1.2 nm Transmission Band(s)† 660.7 nm > 90% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 300 to 640 nm, 680 to 980 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 50.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Unmounted 660.8-0.3 OD5 Ultra Narrow Bandpass Filter Item Number 7307 Angle of Incidence 0 Degrees Center Wavelength 660.8 nm Nominal FWHM < 0.35 nm Transmission Band(s)† 660.8 nm > 85% T Absolute Blocking Level OD5 Blocking Range(s)* OD5: 200 to 651 nm, 666 to 1200 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 50.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 660.89-1 OD6 Ultra Narrow Bandpass Filter Item Number 7051 Angle of Incidence 0 Degrees Center Wavelength 660.89 nm Nominal FWHM < 1.2 nm Transmission Band(s)† 660.89 nm > 90% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 300 to 640 nm, 680 to 980 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 50.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Unmounted 661.5-1 OD5 Ultra Narrow Bandpass Filter Item Number 7620 Angle of Incidence 0 Degrees Center Wavelength 661.5 nm Nominal FWHM < 1.2 nm Transmission Band(s)† 661.5 nm > 95% T Absolute Blocking Level OD5 Blocking Range(s)* OD5: 450 to 650 nm, 673 to 850 nm; OD4: 850 to 1000 nm; OD3: 350 to 450 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 50.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 662.46-0.45 OD4 Ultra Narrow Bandpass Filter Item Number 7054 Angle of Incidence 0 Degrees Center Wavelength 662.46 nm Nominal FWHM < 0.55 nm Transmission Band(s)† 662.46 nm > 85% T Absolute Blocking Level OD4 Blocking Range(s)* OD4: 200 to 642 nm, 682 to 1200 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 49.9 mm Diameter Filter Thickness 2.0 mm Assembly Type Unmounted 665.85-1 OD6 Ultra Narrow Bandpass Filter Item Number 7052 Angle of Incidence 0 Degrees Center Wavelength 665.85 nm Nominal FWHM < 1.2 nm Transmission Band(s)† 665.85 nm > 90% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 550 to 657 nm, 674 to 850 nm; OD5: 500 to 550 nm, 850 to 900 nm; OD4: 375 to 500 nm, 900 to 950 nm; OD3: 950 to 1000 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 50.4 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 666.1-1 OD5 Ultra Narrow Bandpass Filter Item Number 7266 Angle of Incidence 0 Degrees Center Wavelength 666.1 nm Nominal FWHM < 1.2 nm Transmission Band(s)† 666.1 nm > 90% T Absolute Blocking Level OD5 Blocking Range(s)* OD5: 566 to 651 nm, 681 to 766 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 12.5 mm Diameter Filter Thickness 2.0 mm Assembly Type Unmounted 666.1-1 OD5 Ultra Narrow Bandpass Filter Item Number 7267 Angle of Incidence 0 Degrees Center Wavelength 666.1 nm Nominal FWHM < 1.2 nm Transmission Band(s)† 666.1 nm > 90% T Absolute Blocking Level OD5 Blocking Range(s)* OD5: 566 to 651 nm, 681 to 766 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 666.5-1 OD5 Ultra Narrow Bandpass Filter Item Number 7563 Angle of Incidence 0 Degrees Center Wavelength 666.5 nm Nominal FWHM < 1.2 nm Transmission Band(s)† 666.5 nm > 90% T Absolute Blocking Level OD5 Blocking Range(s)* OD5: 566 to 651 nm, 681 to 766 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 12.5 mm Diameter Filter Thickness 2.0 mm Assembly Type Unmounted 667.7-0.5 OD6 Ultra Narrow Bandpass Filter Item Number 7268 Angle of Incidence 0 Degrees Center Wavelength 667.7 nm Nominal FWHM < 0.6 nm Transmission Band(s)† 667.7 nm > 85% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 200 to 654 nm, 682 to 1200 nm Filter Design Multi-Cavity Substrate Type Fused Silica Dimensions 25.3 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 5.0 mm 667.8-1.5 OD6 Ultra Narrow Bandpass Filter Item Number 7074 Angle of Incidence 0 Degrees Center Wavelength 667.8 nm Nominal FWHM < 1.7 nm Transmission Band(s)† 667.8 nm > 90% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 683 to 1100 nm; OD5: 200 to 653 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Unmounted 700nm 706.5-1.5 OD6 Ultra Narrow Bandpass Filter Item Number 7075 Angle of Incidence 0 Degrees Center Wavelength 706.5 nm Nominal FWHM < 1.7 nm Transmission Band(s)† 706.5 nm > 90% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 200 to 691 nm, 723 to 1100 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Unmounted 728.1-1.5 OD6 Ultra Narrow Bandpass Filter Item Number 7076 Angle of Incidence 0 Degrees Center Wavelength 728.1 nm Nominal FWHM < 1.7 nm Transmission Band(s)† 728.1 nm > 90% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 200 to 712 nm, 745 to 1100 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Unmounted 731.6-1 OD4 Ultra Narrow Bandpass Filter Item Number 7343 Angle of Incidence 0 Degrees Center Wavelength 731.6 nm Nominal FWHM < 1.2 nm Transmission Band(s)† 731.6 nm > 90% T Absolute Blocking Level OD4 Blocking Range(s)* OD4: 300 to 716 nm, 747 to 1200 nm Filter Design Multi-Cavity Substrate Type N-BK7 Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 731.6-1 OD4 Ultra Narrow Bandpass Filter Item Number 7342 Angle of Incidence 0 Degrees Center Wavelength 731.6 nm Nominal FWHM < 1.2 nm Transmission Band(s)† 731.6 nm > 90% T Absolute Blocking Level OD4 Blocking Range(s)* OD4: 300 to 716 nm, 747 to 1200 nm Filter Design Multi-Cavity Substrate Type N-BK7 Dimensions 50.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 732.0-1 OD4 Ultra Narrow Bandpass Filter Item Number 7675 Angle of Incidence 0 Degrees Center Wavelength 732.0 nm Nominal FWHM < 1.2 nm Transmission Band(s)† 732.0 nm > 90% T Absolute Blocking Level OD4 Blocking Range(s)* OD4: 300 to 716 nm, 747 to 1200 nm Filter Design Multi-Cavity Substrate Type N-BK7 Dimensions 50.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 740.2-1 OD4 Ultra Narrow Bandpass Filter Item Number 7325 Angle of Incidence 0 Degrees Center Wavelength 740.2 nm Nominal FWHM < 1.2 nm Transmission Band(s)† 740.2 nm > 85% T Absolute Blocking Level OD4 Blocking Range(s)* OD4: 300 to 724 nm, 756 to 1200 nm Filter Design Multi-Cavity Substrate Type N-BK7 Dimensions 50.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 740.2-1 OD4 Ultra Narrow Bandpass Filter Item Number 7326 Angle of Incidence 0 Degrees Center Wavelength 740.2 nm Nominal FWHM < 1.2 nm Transmission Band(s)† 740.2 nm > 85% T Absolute Blocking Level OD4 Blocking Range(s)* OD4: 300 to 724 nm, 756 to 1200 nm Filter Design Multi-Cavity Substrate Type N-BK7 Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 757.9-1 OD4 Ultra Narrow Bandpass Filter Item Number 7026 Angle of Incidence 0 Degrees Center Wavelength 757.9 nm Nominal FWHM < 1.2 nm Transmission Band(s)† 757.9 nm > 85% T Absolute Blocking Level OD4 Blocking Range(s)* OD4: 200 to 735 nm, 781 to 1200 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Unmounted 760.7-1 OD4 Ultra Narrow Bandpass Filter Item Number 7027 Angle of Incidence 0 Degrees Center Wavelength 760.7 nm Nominal FWHM < 1.2 nm Transmission Band(s)† 760.7 nm > 90% T Absolute Blocking Level OD4 Blocking Range(s)* OD4: 200 to 737 nm, 783 to 1200 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Unmounted 760.7-1 OD4 Ultra Narrow Bandpass Filter Item Number 7350 Angle of Incidence 0 Degrees Center Wavelength 760.7 nm Nominal FWHM < 1.2 nm Transmission Band(s)† 760.7 nm > 90% T Absolute Blocking Level OD4 Blocking Range(s)* OD4: 200 to 737 nm, 783 to 1200 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 760.7-1 OD4 Ultra Narrow Bandpass Filter Item Number 7350 Angle of Incidence 0 Degrees Center Wavelength 760.7 nm Nominal FWHM < 1.2 nm Transmission Band(s)† 760.7 nm > 90% T Absolute Blocking Level OD4 Blocking Range(s)* OD4: 200 to 737 nm, 783 to 1200 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 769.89-1 OD7 Ultra Narrow Bandpass Filter Item Number 7269 Angle of Incidence 0 Degrees Center Wavelength 769.89 nm Nominal FWHM < 1.2 nm Transmission Band(s)† 769.89 nm > 85% T Absolute Blocking Level OD7 Blocking Range(s)* OD7 (By Design): 200 to 753 nm, 787 to 1000 nm; OD6: 1000 to 1200 nm Filter Design Multi-Cavity Substrate Type Polished Borofloat® Dimensions 50.4 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 770-1 OD4 Ultra Narrow Bandpass Filter Item Number 7028 Angle of Incidence 0 Degrees Center Wavelength 770 nm Nominal FWHM < 1.2 nm Transmission Band(s)† 770 nm > 90% T Absolute Blocking Level OD4 Blocking Range(s)* OD4: 200 to 746 nm, 794 to 1200 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 770.2-1 OD4 Ultra Narrow Bandpass Filter Item Number 7694 Angle of Incidence 0 Degrees Center Wavelength 770.2 nm Nominal FWHM < 1.2 nm Transmission Band(s)† 770.2 nm > 90% T Absolute Blocking Level OD4 Blocking Range(s)* OD4: 200 to 746 nm, 794 to 1200 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 770.5-1 OD4 Ultra Narrow Bandpass Filter Item Number 7695 Angle of Incidence 0 Degrees Center Wavelength 770.5 nm Nominal FWHM < 1.2 nm Transmission Band(s)† 770.5 nm > 90% T Absolute Blocking Level OD4 Blocking Range(s)* OD4: 200 to 746 nm, 794 to 1200 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 780-1 OD6 Ultra Narrow Bandpass Filter Item Number 7035 Angle of Incidence 0 Degrees Center Wavelength 780 nm Nominal FWHM < 1.2 nm Transmission Band(s)† 780 nm > 90% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 390 to 769 nm, 791 to 1000 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 780-1 OD6 Ultra Narrow Bandpass Filter Item Number 7226 Angle of Incidence 0 Degrees Center Wavelength 780 nm Nominal FWHM < 1.2 nm Transmission Band(s)† 780 nm > 90% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 390 to 769 nm, 791 to 1000 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.3 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 5.0 mm 780.2-1 OD6 Ultra Narrow Bandpass Filter Item Number 7314 Angle of Incidence 0 Degrees Center Wavelength 780.2 nm Nominal FWHM < 1.2 nm Transmission Band(s)† 780.2 nm > 90% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 500 to 769 nm, 791 to 1000 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.3 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 5.0 mm 780.5-1 OD6 Ultra Narrow Bandpass Filter Item Number 7575 Angle of Incidence 0 Degrees Center Wavelength 780.5 nm Nominal FWHM < 1.2 nm Transmission Band(s)† 780.5 nm > 90% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 390 to 769 nm, 791 to 1000 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 794-1.5 OD5 Ultra Narrow Bandpass Filter Item Number 7648 Angle of Incidence 0 Degrees Center Wavelength 794 nm Nominal FWHM < 1.7 nm Transmission Band(s)† 794 nm > 90% T Absolute Blocking Level OD5 Blocking Range(s)* OD5: 694 to 777 nm, 811 to 894 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 12.5 mm Diameter Filter Thickness 2.0 mm Assembly Type Unmounted 794.9-1 OD4 Ultra Narrow Bandpass Filter Item Number 7025 Angle of Incidence 0 Degrees Center Wavelength 794.9 nm Nominal FWHM < 1.2 nm Transmission Band(s)† 794.9 nm > 90% T Absolute Blocking Level OD4 Blocking Range(s)* OD4: 350 to 778 nm, 812 to 1100 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 796.1-1 OD4 Ultra Narrow Bandpass Filter Item Number 7596 Angle of Incidence 0 Degrees Center Wavelength 796.1 nm Nominal FWHM < 1.2 nm Transmission Band(s)† 796.1 nm > 90% T Absolute Blocking Level OD4 Blocking Range(s)* OD4: 350 to 778 nm, 812 to 1100 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 800nm 820-2 OD6 Ultra Narrow Bandpass Filter Item Number 7271 Angle of Incidence 0 Degrees Center Wavelength 820 nm Nominal FWHM < 2.3 nm Transmission Band(s)† 820 nm > 90% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 620 to 802 nm, 838 to 1020 nm; OD4: 400 to 420 nm Filter Design Multi-Cavity Substrate Type Polished Borofloat® Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 828-0.5 OD5 Ultra Narrow Bandpass Filter Item Number 7064 Angle of Incidence 0 Degrees Center Wavelength 828 nm Nominal FWHM < 0.65 nm Transmission Band(s)† 828 nm > 85% T Absolute Blocking Level OD5 Blocking Range(s)* OD5: 200 to 808 nm, 848 to 1050 nm Filter Design Multi-Cavity Substrate Type Polished Borofloat® Dimensions 24.9 mm Diameter Filter Thickness 2.0 mm Assembly Type Unmounted 829-0.5 OD5 Ultra Narrow Bandpass Filter Item Number 7031 Angle of Incidence 0 Degrees Center Wavelength 829 nm Nominal FWHM < 0.65 nm Transmission Band(s)† 829 nm > 85% T Absolute Blocking Level OD5 Blocking Range(s)* OD5: 200 to 809 nm, 849 to 1050 nm Filter Design Multi-Cavity Substrate Type Polished Borofloat® Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 829.375-0.5 OD5 Ultra Narrow Bandpass Filter Item Number 7272 Angle of Incidence 0 Degrees Center Wavelength 829.375 nm Nominal FWHM < 0.65 nm Transmission Band(s)† 829.375 nm > 80% T Absolute Blocking Level OD5 Blocking Range(s)* OD5: 200 to 811 nm, 845 to 1050 nm Filter Design Multi-Cavity Substrate Type Polished Borofloat® Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 830-0.4 OD5 Ultra Narrow Bandpass Filter Item Number 7670 Angle of Incidence 0 Degrees Center Wavelength 830 nm +0.4 / -0.1 nm FWHM < 0.45 nm Transmission Band(s)† Peak> 90% T Absolute Blocking Level OD5 Blocking Range(s)* OD5: 600 to 792 nm, 873 to 1200 nm Filter Design Single Cavity Substrate Type Borofloat® Dimensions 25.3 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 5.0 mm 853.375-0.75 OD6 Ultra Narrow Bandpass Filter Item Number 7533 Angle of Incidence 0 Degrees Center Wavelength 853.375 nm Nominal FWHM < 0.85 nm Transmission Band(s)† 853.375 nm > 85% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 200 to 836 nm, 872 to 1200 nm; OD4: 1200 to 1400 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.0 mm Diameter Filter Thickness 0.7 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 853.75-0.75 OD6 Ultra Narrow Bandpass Filter Item Number 7534 Angle of Incidence 0 Degrees Center Wavelength 853.75 nm Nominal FWHM < 0.85 nm Transmission Band(s)† 853.75 nm > 85% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 200 to 836 nm, 872 to 1200 nm; OD4: 1200 to 1400 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.0 mm Diameter Filter Thickness 0.7 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 853.75-0.75 OD6 Ultra Narrow Bandpass Filter Item Number 7290 Angle of Incidence 0 Degrees Center Wavelength 853.75 nm Nominal FWHM < 0.85 nm Transmission Band(s)† 853.75 nm > 85% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 200 to 836 nm, 872 to 1200 nm; OD4: 1200 to 1400 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 12.6 mm Diameter Filter Thickness 0.7 mm Assembly Type Unmounted 854-0.75 OD6 Ultra Narrow Bandpass Filter Item Number 7291 Angle of Incidence 0 Degrees Center Wavelength 854 nm Nominal FWHM < 0.85 nm Transmission Band(s)† 854 nm > 85% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 200 to 836 nm, 872 to 1200 nm; OD4: 1200 to 1400 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 12.6 mm Diameter Filter Thickness 0.7 mm Assembly Type Unmounted 854.125-0.75 OD6 Ultra Narrow Bandpass Filter Item Number 7274 Angle of Incidence 0 Degrees Center Wavelength 854.125 nm Nominal FWHM < 0.85 nm Transmission Band(s)† 854.125 nm > 85% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 200 to 836 nm, 872 to 1200 nm; OD4: 1200 to 1400 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.0 mm Diameter Filter Thickness 0.7 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 854.125-0.75 OD6 Ultra Narrow Bandpass Filter Item Number 7273 Angle of Incidence 0 Degrees Center Wavelength 854.125 nm Nominal FWHM < 0.85 nm Transmission Band(s)† 854.125 nm > 85% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 200 to 836 nm, 872 to 1200 nm; OD4: 1200 to 1400 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 12.6 mm Diameter Filter Thickness 0.7 mm Assembly Type Unmounted 854.375-0.75 OD6 Ultra Narrow Bandpass Filter Item Number 7275 Angle of Incidence 0 Degrees Center Wavelength 854.375 nm Nominal FWHM < 0.85 nm Transmission Band(s)† 854.375 nm > 85% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 200 to 836 nm, 872 to 1200 nm; OD4: 1200 to 1400 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 12.6 mm Diameter Filter Thickness 0.7 mm Assembly Type Unmounted 854.625-0.75 OD6 Ultra Narrow Bandpass Filter Item Number 7276 Angle of Incidence 0 Degrees Center Wavelength 854.625 nm Nominal FWHM < 0.85 nm Transmission Band(s)† 854.625 nm > 85% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 200 to 836 nm, 872 to 1200 nm; OD4: 1200 to 1400 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 12.6 mm Diameter Filter Thickness 0.7 mm Assembly Type Unmounted 854.875-0.75 OD6 Ultra Narrow Bandpass Filter Item Number 7277 Angle of Incidence 0 Degrees Center Wavelength 854.875 nm Nominal FWHM < 0.85 nm Transmission Band(s)† 854.875 nm > 85% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 200 to 836 nm, 872 to 1200 nm; OD4: 1200 to 1400 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 12.6 mm Diameter Filter Thickness 0.7 mm Assembly Type Unmounted 855.125-0.75 OD6 Ultra Narrow Bandpass Filter Item Number 7278 Angle of Incidence 0 Degrees Center Wavelength 855.125 nm Nominal FWHM < 0.85 nm Transmission Band(s)† 855.125 nm > 85% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 200 to 836 nm, 872 to 1200 nm; OD4: 1200 to 1400 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 12.6 mm Diameter Filter Thickness 0.7 mm Assembly Type Unmounted 855.125-0.75 OD6 Ultra Narrow Bandpass Filter Item Number 7361 Angle of Incidence 0 Degrees Center Wavelength 855.125 nm Nominal FWHM < 0.85 nm Transmission Band(s)† 855.125 nm > 85% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 200 to 836 nm, 872 to 1200 nm; OD4: 1200 to 1400 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.0 mm Diameter Filter Thickness 0.7 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 855.375-0.75 OD6 Ultra Narrow Bandpass Filter Item Number 7279 Angle of Incidence 0 Degrees Center Wavelength 855.375 nm Nominal FWHM < 0.85 nm Transmission Band(s)† 855.375 nm > 85% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 200 to 836 nm, 872 to 1200 nm; OD4: 1200 to 1400 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 12.6 mm Diameter Filter Thickness 0.7 mm Assembly Type Unmounted 855.375-0.75 OD6 Ultra Narrow Bandpass Filter Item Number 7362 Angle of Incidence 0 Degrees Center Wavelength 855.375 nm Nominal FWHM < 0.85 nm Transmission Band(s)† 855.375 nm > 85% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 200 to 836 nm, 872 to 1200 nm; OD4: 1200 to 1400 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.0 mm Diameter Filter Thickness 0.7 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 855.625-0.75 OD6 Ultra Narrow Bandpass Filter Item Number 7363 Angle of Incidence 0 Degrees Center Wavelength 855.625 nm Nominal FWHM < 0.85 nm Transmission Band(s)† 855.625 nm > 85% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 200 to 836 nm, 872 to 1200 nm; OD4: 1200 to 1400 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.0 mm Diameter Filter Thickness 0.7 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 855.625-0.75 OD6 Ultra Narrow Bandpass Filter Item Number 7280 Angle of Incidence 0 Degrees Center Wavelength 855.625 nm Nominal FWHM < 0.85 nm Transmission Band(s)† 855.625 nm > 85% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 200 to 836 nm, 872 to 1200 nm; OD4: 1200 to 1400 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 12.6 mm Diameter Filter Thickness 0.7 mm Assembly Type Unmounted 855.875-0.75 OD6 Ultra Narrow Bandpass Filter Item Number 7281 Angle of Incidence 0 Degrees Center Wavelength 855.875 nm Nominal FWHM < 0.85 nm Transmission Band(s)† 855.875 nm > 85% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 200 to 836 nm, 872 to 1200 nm; OD4: 1200 to 1400 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 12.6 mm Diameter Filter Thickness 0.7 mm Assembly Type Unmounted 855.875-0.75 OD6 Ultra Narrow Bandpass Filter Item Number 7364 Angle of Incidence 0 Degrees Center Wavelength 855.875 nm Nominal FWHM < 0.85 nm Transmission Band(s)† 855.875 nm > 85% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 200 to 836 nm, 872 to 1200 nm; OD4: 1200 to 1400 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.0 mm Diameter Filter Thickness 0.7 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 856.125-0.75 OD6 Ultra Narrow Bandpass Filter Item Number 7535 Angle of Incidence 0 Degrees Center Wavelength 856.125 nm Nominal FWHM < 0.85 nm Transmission Band(s)† 856.125 nm > 85% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 200 to 836 nm, 872 to 1200 nm; OD4: 1200 to 1400 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.0 mm Diameter Filter Thickness 0.7 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 856.125-0.75 OD6 Ultra Narrow Bandpass Filter Item Number 7282 Angle of Incidence 0 Degrees Center Wavelength 856.125 nm Nominal FWHM < 0.85 nm Transmission Band(s)† 856.125 nm > 85% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 200 to 836 nm, 872 to 1200 nm; OD4: 1200 to 1400 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 12.6 mm Diameter Filter Thickness 0.7 mm Assembly Type Unmounted 856.375-0.75 OD6 Ultra Narrow Bandpass Filter Item Number 7283 Angle of Incidence 0 Degrees Center Wavelength 856.375 nm Nominal FWHM < 0.85 nm Transmission Band(s)† 856.375 nm > 85% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 200 to 836 nm, 872 to 1200 nm; OD4: 1200 to 1400 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 12.6 mm Diameter Filter Thickness 0.7 mm Assembly Type Unmounted 856.625-0.75 OD6 Ultra Narrow Bandpass Filter Item Number 7284 Angle of Incidence 0 Degrees Center Wavelength 856.625 nm Nominal FWHM < 0.85 nm Transmission Band(s)† 856.625 nm > 85% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 200 to 836 nm, 872 to 1200 nm; OD4: 1200 to 1400 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 12.6 mm Diameter Filter Thickness 0.7 mm Assembly Type Unmounted 856.875-0.75 OD6 Ultra Narrow Bandpass Filter Item Number 7285 Angle of Incidence 0 Degrees Center Wavelength 856.875 nm Nominal FWHM < 0.85 nm Transmission Band(s)† 856.875 nm > 85% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 200 to 836 nm, 872 to 1200 nm; OD4: 1200 to 1400 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 12.6 mm Diameter Filter Thickness 0.7 mm Assembly Type Unmounted 857.125-0.75 OD6 Ultra Narrow Bandpass Filter Item Number 7286 Angle of Incidence 0 Degrees Center Wavelength 857.125 nm Nominal FWHM < 0.85 nm Transmission Band(s)† 857.125 nm > 85% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 200 to 836 nm, 872 to 1200 nm; OD4: 1200 to 1400 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 12.6 mm Diameter Filter Thickness 0.7 mm Assembly Type Unmounted 857.375-0.75 OD6 Ultra Narrow Bandpass Filter Item Number 7287 Angle of Incidence 0 Degrees Center Wavelength 857.375 nm Nominal FWHM < 0.85 nm Transmission Band(s)† 857.375 nm > 85% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 200 to 836 nm, 872 to 1200 nm; OD4: 1200 to 1400 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 12.6 mm Diameter Filter Thickness 0.7 mm Assembly Type Unmounted 857.625-0.75 OD6 Ultra Narrow Bandpass Filter Item Number 7288 Angle of Incidence 0 Degrees Center Wavelength 857.625 nm Nominal FWHM < 0.85 nm Transmission Band(s)† 857.625 nm > 85% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 200 to 836 nm, 872 to 1200 nm; OD4: 1200 to 1400 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 12.6 mm Diameter Filter Thickness 0.7 mm Assembly Type Unmounted 857.875-0.75 OD6 Ultra Narrow Bandpass Filter Item Number 7289 Angle of Incidence 0 Degrees Center Wavelength 857.875 nm Nominal FWHM < 0.85 nm Transmission Band(s)† 857.875 nm > 85% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 200 to 836 nm, 872 to 1200 nm; OD4: 1200 to 1400 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 12.6 mm Diameter Filter Thickness 0.7 mm Assembly Type Unmounted 858-0.75 OD6 Ultra Narrow Bandpass Filter Item Number 7292 Angle of Incidence 0 Degrees Center Wavelength 858 nm Nominal FWHM < 0.85 nm Transmission Band(s)† 858 nm > 85% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 200 to 836 nm, 872 to 1200 nm; OD4: 1200 to 1400 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 12.6 mm Diameter Filter Thickness 0.7 mm Assembly Type Unmounted 858.25-0.75 OD6 Ultra Narrow Bandpass Filter Item Number 7293 Angle of Incidence 0 Degrees Center Wavelength 858.25 nm Nominal FWHM < 0.85 nm Transmission Band(s)† 858.25 nm > 85% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 200 to 836 nm, 872 to 1200 nm; OD4: 1200 to 1400 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 12.6 mm Diameter Filter Thickness 0.7 mm Assembly Type Unmounted 900nm 912-1.5 OD4 Ultra Narrow Bandpass Filter Item Number 7020 Angle of Incidence 0 Degrees Center Wavelength 912 nm Nominal FWHM < 1.7 nm Transmission Band(s)† 912 nm > 90% T Absolute Blocking Level OD4 Blocking Range(s)* OD4: 890 to 908 nm, 915 to 1020 nm Filter Design Multi-Cavity Substrate Type Fused Silica Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 935.0-0.45 OD5 Ultra Narrow Bandpass Filter Item Number 7551 Angle of Incidence 0 Degrees Center Wavelength 935.0 nm Nominal FWHM < 0.55 nm Transmission Band(s)† 935.0 nm > 85% T Absolute Blocking Level OD5 Blocking Range(s)* OD5: 250 to 916 nm, 955 to 1400 nm Filter Design Multi-Cavity Substrate Type Fused Silica Dimensions 25.3 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 5.0 mm 935.12-0.45 OD5 Ultra Narrow Bandpass Filter Item Number 7294 Angle of Incidence 0 Degrees Center Wavelength 935.12 nm Nominal FWHM < 0.55 nm Transmission Band(s)† 935.12 nm > 85% T Absolute Blocking Level OD5 Blocking Range(s)* OD5: 250 to 916 nm, 955 to 1400 nm Filter Design Multi-Cavity Substrate Type Fused Silica Dimensions 25.3 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 5.0 mm 935.4-0.45 OD5 Ultra Narrow Bandpass Filter Item Number 7567 Angle of Incidence 0 Degrees Center Wavelength 935.4 nm Nominal FWHM < 0.55 nm Transmission Band(s)† 935.4 nm > 85% T Absolute Blocking Level OD5 Blocking Range(s)* OD5: 250 to 916 nm, 955 to 1400 nm Filter Design Multi-Cavity Substrate Type Fused Silica Dimensions 25.3 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 5.0 mm 1000nm 1030.7-3 OD5 Ultra Narrow Bandpass Filter Item Number 7355 Angle of Incidence 0 Degrees Center Wavelength 1030.7 nm Nominal FWHM < 3.4 nm Transmission Band(s)† 1030.7 nm > 95% T Absolute Blocking Level OD5 Blocking Range(s)* OD5: 1053 to 1200 nm, 200 to 1007 nm Filter Design Multi-Cavity Substrate Type Polished Borofloat® Dimensions 25.3 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 5.0 mm 1031.2-0.6 OD8 Ultra Narrow Bandpass Filter Item Number 7062 Angle of Incidence 0 Degrees Center Wavelength 1031.2 nm Nominal FWHM < 0.7 nm Transmission Band(s)† 1031.2 nm > 85% T Absolute Blocking Level OD8 Blocking Range(s)* OD8 (By Design): 1042 to 1130 nm, 940 to 1020 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 1031.4-0.6 OD8 Ultra Narrow Bandpass Filter Item Number 7630 Angle of Incidence 0 Degrees Center Wavelength 1031.4 nm Nominal FWHM < 0.7 nm Transmission Band(s)† 1031.4 nm > 85% T Absolute Blocking Level OD8 Blocking Range(s)* OD8 (By Design): 1042 to 1130 nm, 940 to 1020 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 1053-0.5 OD6 Ultra Narrow Bandpass Filter Item Number 7613 Angle of Incidence 0 Degrees Center Wavelength 1053 nm Nominal FWHM < 0.6 nm Transmission Band(s)† 1053 nm > 90% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 1074 to 1200 nm, 200 to 1032 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 1053-4 OD6 Ultra Narrow Bandpass Filter Item Number 7012 Angle of Incidence 0 Degrees Center Wavelength 1053 nm Nominal FWHM < 4.5 nm Transmission Band(s)† 1053 nm > 90% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 1069 to 1200 nm, 945 to 1037 nm Filter Design Multi-Cavity Substrate Type Fused Silica Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 1053-4 OD6 Ultra Narrow Bandpass Filter Item Number 7012 Angle of Incidence 0 Degrees Center Wavelength 1053 nm Nominal FWHM < 4.5 nm Transmission Band(s)† 1053 nm > 90% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 1069 to 1200 nm, 945 to 1037 nm Filter Design Multi-Cavity Substrate Type Fused Silica Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 1060.7-2.6 OD5 Ultra Narrow Bandpass Filter Item Number 7347 Angle of Incidence 0 Degrees Center Wavelength 1060.7 nm Nominal FWHM < 2.9 nm Transmission Band(s)† 1060.7 nm > 95% T Absolute Blocking Level OD5 Blocking Range(s)* OD5: 1073 to 1200 nm, 950 to 1049 nm; OD3: 680 to 950 nm Filter Design Multi-Cavity Substrate Type Polished Borofloat® Dimensions 50.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Unmounted 1062.3-1.8 OD5 Ultra Narrow Bandpass Filter Item Number 7014 Angle of Incidence 0 Degrees Center Wavelength 1062.3 nm Nominal FWHM < 2.0 nm Transmission Band(s)† 1062.3 nm > 90% T Absolute Blocking Level OD5 Blocking Range(s)* OD5: 1072 to 1200 nm, 250 to 1053 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 1063.1-1.8 OD6 Ultra Narrow Bandpass Filter Item Number 7063 Angle of Incidence 0 Degrees Center Wavelength 1063.1 nm Nominal FWHM < 2.0 nm Transmission Band(s)† 1063.1 nm > 95% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 1078 to 1300 nm, 800 to 1050 nm Filter Design Multi-Cavity Substrate Type Fused Silica Dimensions 25.3 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 5.0 mm 1063.5-1 OD7 Ultra Narrow Bandpass Filter Item Number 7565 Angle of Incidence 0 Degrees Center Wavelength 1063.5 nm Nominal FWHM < 1.2 nm Transmission Band(s)† 1063.5 nm > 90% T Absolute Blocking Level OD7 Blocking Range(s)* OD7 (By Design): 1092 to 1100 nm, 300 to 1037 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.3 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 5.0 mm 1063.9-1 OD6 Ultra Narrow Bandpass Filter Item Number 7017 Angle of Incidence 0 Degrees Center Wavelength 1063.9 nm Nominal FWHM < 1.2 nm Transmission Band(s)† 1063.9 nm > 90% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 1086 to 1600 nm, 800 to 1041 nm Filter Design Multi-Cavity Substrate Type Fused Silica Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 1064-0.5 OD6 Ultra Narrow Bandpass Filter Item Number 7295 Angle of Incidence 0 Degrees Center Wavelength 1064 nm Nominal FWHM < 0.6 nm Transmission Band(s)† 1064 nm > 85% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 1086 to 1200 nm, 200 to 1042 nm Filter Design Multi-Cavity Substrate Type Fused Silica Dimensions 25.3 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 5.0 mm 1064.1-1 OD7 Ultra Narrow Bandpass Filter Item Number 7084 Angle of Incidence 0 Degrees Center Wavelength 1064.1 nm Nominal FWHM < 1.2 nm Transmission Band(s)† 1064.1 nm > 90% T Absolute Blocking Level OD7 Blocking Range(s)* OD7 (By Design): 1092 to 1100 nm, 300 to 1037 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.3 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 5.0 mm 1064.15-1.8 OD6 Ultra Narrow Bandpass Filter Item Number 7606 Angle of Incidence 0 Degrees Center Wavelength 1064.15 nm Nominal FWHM < 2.0 nm Transmission Band(s)† 1064.15 nm > 90% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 1087 to 1300 nm, 400 to 1041 nm Filter Design Multi-Cavity Substrate Type Fused Silica Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 1064.15-1 OD8 Ultra Narrow Bandpass Filter Item Number 7685 Angle of Incidence 0 Degrees Center Wavelength 1064.15 nm Nominal FWHM < 1.2 nm Transmission Band(s)† 1064.15 nm > 90% T Absolute Blocking Level OD8 Blocking Range(s)* OD8 (By Design): 354.72 nm, 532.08 nm; OD6: 1086 to 1200 nm, 200 to 1042 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.3 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 5.0 mm 1064.15-1 OD8 Ultra Narrow Bandpass Filter Item Number 7684 Angle of Incidence 0 Degrees Center Wavelength 1064.15 nm Nominal FWHM < 1.2 nm Transmission Band(s)† 1064.15 nm > 90% T Absolute Blocking Level OD8 Blocking Range(s)* OD8 (By Design): 354.72 nm, 532.08 nm; OD6: 1086 to 1200 nm, 200 to 1042 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 50.6 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 1064.16-0.4 OD5 Ultra Narrow Bandpass Filter Item Number 7055 Angle of Incidence 0 Degrees Center Wavelength 1064.16 nm +0.5 / -0.3 nm FWHM < 0.6 nm Transmission Band(s)† Peak> 85% T Absolute Blocking Level OD5 Blocking Range(s)* OD5: 1094 to 1150 nm, 200 to 1024 nm; OD4: 1150 to 1200 nm Filter Design Single Cavity Substrate Type Fused Silica Dimensions 25.3 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 5.0 mm 1064.2-0.7 OD5 Ultra Narrow Bandpass Filter Item Number 7297 Angle of Incidence 0 Degrees Center Wavelength 1064.2 nm Nominal FWHM < 0.8 nm Transmission Band(s)† 1064.2 nm > 90% T Absolute Blocking Level OD5 Blocking Range(s)* OD5: 1086 to 1300 nm, 300 to 1042 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 1064.2-0.6 OD5 Ultra Narrow Bandpass Filter Item Number 7544 Angle of Incidence 0 Degrees Center Wavelength 1064.2 nm Nominal FWHM < 0.7 nm Transmission Band(s)† 1064.2 nm > 85% T Absolute Blocking Level OD5 Blocking Range(s)* OD5: 1086 to 1300 nm, 300 to 1042 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 1064.2-0.7 OD5 Ultra Narrow Bandpass Filter Item Number 7296 Angle of Incidence 0 Degrees Center Wavelength 1064.2 nm Nominal FWHM < 0.8 nm Transmission Band(s)† 1064.2 nm > 90% T Absolute Blocking Level OD5 Blocking Range(s)* OD5: 1086 to 1300 nm, 300 to 1042 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 50.8 mm Diameter Filter Thickness 2.0 mm Assembly Type Unmounted 1064.4-2 OD6 Ultra Narrow Bandpass Filter Item Number 7299 Angle of Incidence 0 Degrees Center Wavelength 1064.4 nm Nominal FWHM < 2.3 nm Transmission Band(s)† 1064.4 nm > 90% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 1087 to 1800 nm, 800 to 1041 nm Filter Design Multi-Cavity Substrate Type N-BK7 Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 1064.4-0.85 OD6 Ultra Narrow Bandpass Filter Item Number 7311 Angle of Incidence 0 Degrees Center Wavelength 1064.4 nm Nominal FWHM < 1.0 nm Transmission Band(s)† 1064.4 nm > 90% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 1087 to 1800 nm, 800 to 1042 nm Filter Design Multi-Cavity Substrate Type N-BK7 Dimensions 37.5 mm Diameter Filter Thickness 2.0 mm Assembly Type Unmounted 1064.4-0.85 OD6 Ultra Narrow Bandpass Filter Item Number 7298 Angle of Incidence 0 Degrees Center Wavelength 1064.4 nm Nominal FWHM < 1.0 nm Transmission Band(s)† 1064.4 nm > 90% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 1087 to 1800 nm, 800 to 1042 nm Filter Design Multi-Cavity Substrate Type N-BK7 Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 1064.4-1 OD7 Ultra Narrow Bandpass Filter Item Number 7571 Angle of Incidence 0 Degrees Center Wavelength 1064.4 nm Nominal FWHM < 1.2 nm Transmission Band(s)† 1064.4 nm > 90% T Absolute Blocking Level OD7 Blocking Range(s)* OD7 (By Design): 1092 to 1100 nm, 300 to 1037 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.3 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 5.0 mm 1064.6-0.4 OD6 Ultra Narrow Bandpass Filter Item Number 7300 Angle of Incidence 0 Degrees Center Wavelength 1064.6 nm +0.4 / -0.1 nm FWHM < 0.5 nm Transmission Band(s)† Peak> 85% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 300 to 1000 nm Filter Design Single Cavity Substrate Type Borofloat® Dimensions 50.4 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 1064.7-1 OD7 Ultra Narrow Bandpass Filter Item Number 7572 Angle of Incidence 0 Degrees Center Wavelength 1064.7 nm Nominal FWHM < 1.2 nm Transmission Band(s)† 1064.7 nm > 90% T Absolute Blocking Level OD7 Blocking Range(s)* OD7 (By Design): 1092 to 1100 nm, 300 to 1037 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.3 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 5.0 mm 1064.9-0.4 OD5 Ultra Narrow Bandpass Filter Item Number 7545 Angle of Incidence 0 Degrees Center Wavelength 1064.9 nm +0.5 / -0.3 nm FWHM < 0.6 nm Transmission Band(s)† Peak> 85% T Absolute Blocking Level OD5 Blocking Range(s)* OD5: 1094 to 1150 nm, 200 to 1024 nm; OD4: 1150 to 1200 nm Filter Design Single Cavity Substrate Type Fused Silica Dimensions 25.3 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 5.0 mm 1065-1 OD8 Ultra Narrow Bandpass Filter Item Number 7686 Angle of Incidence 0 Degrees Center Wavelength 1065 nm Nominal FWHM < 1.2 nm Transmission Band(s)† 1065 nm > 90% T Absolute Blocking Level OD8 Blocking Range(s)* OD8 (By Design): 354.72 nm, 532.08 nm; OD6: 1086 to 1200 nm, 200 to 1042 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 50.6 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 1065-3 OD4 Ultra Narrow Bandpass Filter Item Number 7538 Angle of Incidence 0 Degrees Center Wavelength 1065 nm Nominal FWHM < 3.4 nm Transmission Band(s)† 1065 nm > 90% T Absolute Blocking Level OD4 Blocking Range(s)* OD4: 1078 to 1200 nm, 200 to 1051 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 30.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Unmounted 1065-1.8 OD6 Ultra Narrow Bandpass Filter Item Number 7080 Angle of Incidence 0 Degrees Center Wavelength 1065 nm Nominal FWHM < 2.0 nm Transmission Band(s)† 1065 nm > 90% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 1079 to 1300 nm, 800 to 1051 nm Filter Design Multi-Cavity Substrate Type Fused Silica Dimensions 25.3 mm Diameter Filter Thickness 2.0 mm Assembly Type Unmounted 1072.3-5.2 OD6 Ultra Narrow Bandpass Filter Item Number 7061 Angle of Incidence 0 Degrees Center Wavelength 1072.3 nm Nominal FWHM < 5.7 nm Transmission Band(s)† 1072.3 nm > 90% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 1096 to 1200 nm, 950 to 1049 nm; OD5: 200 to 950 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 1075-1.5 OD4 Ultra Narrow Bandpass Filter Item Number 7631 Angle of Incidence 0 Degrees Center Wavelength 1075 nm Nominal FWHM < 1.7 nm Transmission Band(s)† 1075 nm > 95% T Absolute Blocking Level OD4 Blocking Range(s)* OD4: 1083 to 1800 nm, 700 to 1068 nm Filter Design Multi-Cavity Substrate Type Fused Silica Dimensions 34.9 mm Diameter Filter Thickness 5.0 mm Assembly Type Unmounted 1083-1.4 OD3 Ultra Narrow Bandpass Filter Item Number 7301 Angle of Incidence 0 Degrees Center Wavelength 1083 nm Nominal FWHM < 1.7 nm Transmission Band(s)† 1083 nm > 90% T Absolute Blocking Level OD3 Blocking Range(s)* OD3: 1091 to 1500 nm, 480 to 1075 nm Filter Design Multi-Cavity Substrate Type Polished Borofloat® Dimensions 25.4 mm Diameter Filter Thickness 2.0 mm Assembly Type Unmounted 1500nm 1534.3-3 OD7 Ultra Narrow Bandpass Filter Item Number 7356 Angle of Incidence 0 Degrees Center Wavelength 1534.3 nm Nominal FWHM < 3.4 nm Transmission Band(s)† 1534.3 nm > 90% T Absolute Blocking Level OD7 Blocking Range(s)* OD7 (By Design): 1559 to 1600 nm, 300 to 1509 nm Filter Design Multi-Cavity Substrate Type Borofloat® Dimensions 25.3 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 5.0 mm 1550.12-4 OD6 Ultra Narrow Bandpass Filter Item Number 7324 Angle of Incidence 0 Degrees Center Wavelength 1550.12 nm Nominal FWHM < 4.5 nm Transmission Band(s)† 1550.12 nm > 85% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 1350 to 1526 nm, 1574 to 1750 nm; OD5: 780 to 1350 nm Filter Design Multi-Cavity Substrate Type Fused Silica Dimensions 34.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Unmounted 1550.6-1.8 OD4 Ultra Narrow Bandpass Filter Item Number 7323 Angle of Incidence 0 Degrees Center Wavelength 1550.6 nm Nominal FWHM < 2.0 nm Transmission Band(s)† 1550.6 nm > 90% T Absolute Blocking Level OD4 Blocking Range(s)* OD4: 900 to 1533 nm; OD3: 1569 to 1650 nm Filter Design Multi-Cavity Substrate Type Fused Silica Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 1571.91-1.2 OD5 Ultra Narrow Bandpass Filter Item Number 7304 Angle of Incidence 0 Degrees Center Wavelength 1571.91 nm Nominal FWHM < 1.5 nm Transmission Band(s)† 1571.91 nm > 90% T Absolute Blocking Level OD5 Blocking Range(s)* OD5: 1604 to 2100 nm, 800 to 1540 nm Filter Design Multi-Cavity Substrate Type Polished Borofloat® Dimensions 49.9 mm Diameter Filter Thickness 2.0 mm Assembly Type Unmounted 1571.91-0.45 OD6 Ultra Narrow Bandpass Filter Item Number 7312 Angle of Incidence 0 Degrees Center Wavelength 1571.91 nm Nominal FWHM < 0.55 nm Transmission Band(s)† 1571.91 nm > 85% T Absolute Blocking Level OD6 Blocking Range(s)* OD6: 1604 to 1800 nm, 800 to 1540 nm Filter Design Multi-Cavity Substrate Type Fused Silica Dimensions 38.1 mm Diameter Filter Thickness 5.0 mm Assembly Type Unmounted 1571.91-1.2 OD5 Ultra Narrow Bandpass Filter Item Number 7304 Angle of Incidence 0 Degrees Center Wavelength 1571.91 nm Nominal FWHM < 1.5 nm Transmission Band(s)† 1571.91 nm > 90% T Absolute Blocking Level OD5 Blocking Range(s)* OD5: 1604 to 2100 nm, 800 to 1540 nm Filter Design Multi-Cavity Substrate Type Polished Borofloat® Dimensions 49.9 mm Diameter Filter Thickness 2.0 mm Assembly Type Unmounted 1572.5-1.2 OD5 Ultra Narrow Bandpass Filter Item Number 7530 Angle of Incidence 0 Degrees Center Wavelength 1572.5 nm Nominal FWHM < 1.5 nm Transmission Band(s)† 1572.5 nm > 90% T Absolute Blocking Level OD5 Blocking Range(s)* OD5: 1604 to 2100 nm, 800 to 1540 nm Filter Design Multi-Cavity Substrate Type Polished Borofloat® Dimensions 49.9 mm Diameter Filter Thickness 2.0 mm Assembly Type Unmounted 1600nm 1645.05-1 OD5 Ultra Narrow Bandpass Filter Item Number 7303 Angle of Incidence 0 Degrees Center Wavelength 1645.05 nm Nominal FWHM < 1.2 nm Transmission Band(s)† 1645.05 nm > 90% T Absolute Blocking Level OD5 Blocking Range(s)* OD5: 1679 to 1850 nm, 500 to 1611 nm Filter Design Multi-Cavity Substrate Type Fused Silica Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 1645.3-1 OD5 Ultra Narrow Bandpass Filter Item Number 7540 Angle of Incidence 0 Degrees Center Wavelength 1645.3 nm Nominal FWHM < 1.2 nm Transmission Band(s)† 1645.3 nm > 90% T Absolute Blocking Level OD5 Blocking Range(s)* OD5: 1679 to 1850 nm, 500 to 1611 nm Filter Design Multi-Cavity Substrate Type Fused Silica Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 1645.7-2 OD2 Ultra Narrow Bandpass Filter Item Number 7302 Angle of Incidence 0 Degrees Center Wavelength 1645.7 nm Nominal FWHM < 2.3 nm Transmission Band(s)† 1645.7 nm > 90% T Absolute Blocking Level OD2 Blocking Range(s)* OD2: 1654 to 1800 nm, 400 to 1637 nm Filter Design Multi-Cavity Substrate Type N-BK7 Dimensions 25.0 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 3.5 mm 1650.96-0.8 OD4 Ultra Narrow Bandpass Filter Item Number 7088 Angle of Incidence 0 Degrees Center Wavelength 1650.96 nm Nominal FWHM < 1.0 nm Transmission Band(s)† 1650.96 nm > 90% T Absolute Blocking Level OD4 Blocking Range(s)* OD4: 1664 to 1800 nm, 300 to 1638 nm Filter Design Multi-Cavity Substrate Type Fused Silica Dimensions 25.3 mm Diameter Filter Thickness 2.0 mm Assembly Type Anodized Aluminum Ring Assembly Thickness 5.0 mm
-
